Heterogeneity in the volatility spillover of cryptocurrencies and exchanges

Abstract

This study examines the volatility spillovers in four representative exchanges and for six liquid cryptocurrencies. Using the high-frequency trading data of exchanges, the heterogeneity of exchanges in terms of volatility spillover can be examined dynamically in the time and frequency domains. We find that Ripple is a net receiver on Coinbase but acts as a net contributor on other exchanges. Bitfinex and Binance have different net spillover effects on the six cryptocurrency markets. Finally, we identify the determinants of total connectedness in two types of volatility spillover, which can explain cryptocurrency or exchange interlinkage.

Introduction

Cryptocurrencies can be cross-listed on various exchanges, and research interest in the heterogeneity of cryptocurrency volatility spillovers across exchanges has recently emerged. The same portfolio can express diverse volatility spillover mechanisms across different exchanges, owing to the different features of trading regulations, trading attributions (Dimpfl and Peter 2021), and exchange reserves (Hoang and Baur 2021). Investors and regulators must identify the volatility connectednessFootnote 1 among cryptocurrencies on different exchanges. The volatility spillover of cryptocurrencies on one exchange can provide investors with potential diversification benefits at a specific venue based on net pairwise directional connectedness, which might offer a unique premium compared with other exchanges. Furthermore, the volatility spillover of cryptocurrencies reveals the net emitting effect of future uncertainty (Diebold and Yılmaz 2014), which can help supervisors perform risk management for specific exchanges. However, the current literature on cryptocurrency volatility spillovers sets the scope as the global market, except for one specific exchange (Caporale et al. 2021). The volatility spillover of cryptocurrencies stems from a special crisis and is driven by investor trading (Diebold and Yılmaz 2014), which could differ across exchanges. The heterogeneity of exchange features should not be neglected when analyzing the mechanism underlying cryptocurrency volatility spillovers. Baur and Hoang (2022) have investigated the volatility connectedness among ten cryptocurrencies in Binance and Bitfinex, emphasizing a similar connectedness estimation for both exchanges rather than the volatility transmission. In contrast, our study aims to explore the volatility transmission in representative exchanges, which can fill the gap in knowledge on the heterogeneity of cryptocurrency volatility spillovers.

Triggered by the same cryptocurrency exhibiting various features across different exchanges, the heterogeneity of exchange volatility spillovers is under debate. The price discrepancy has been observed across exchanges (Baur and Dimpfl 2020; Borri and Shakhnov 2019; Dimpfl and Peter 2021; Giudici and Abu-Hashish 2019; Tsang and Yang 2020). The price difference creates an arbitrage opportunity for investors to obtain excess profits by trading across exchanges (Augustin et al. 2023; Makarov and Schoar 2021). When arbitrage occurs, the price co-movement across markets causes volatility spillover (Liu and Gong 2020), which can exacerbate the volatility of the cryptocurrency market. Constructing the exchange volatility spillover network in specific cryptocurrency markets is beneficial for regulators when identifying the exchange that serves as the source of the contagion. An exchange volatility network can also provide quantitative analysis for arbitrageurs to construct portfolios based on the high-/low- connected exchange pairs. Studies have investigated the return or volatility transmission among Bitcoin (BTC) exchanges (Alexander and Heck 2020; Carol et al. 2021; Dimpfl and Elshiaty 2021; Dyhrberg 2020; Gillaizeau et al. 2019; Giudici and Abu-Hashish 2019; Hoang and Baur 2021; Ji et al. 2021). Nevertheless, research remains scarce on volatility generation across exchanges (Dimpfl and Elshiaty 2021). With the development and acceptance of Ether and Litecoin, the volatility transmission of altcoins should also be considered. By examining the volatility transmission in altcoin markets with high capitalization, our study can enrich the current research on exchange volatility spillovers.

This study examines the heterogeneity of exchange volatility spillovers within one cryptocurrency market and the cryptocurrency volatility spillovers within an exchange in both the time and frequency domains. We focus on specific exchanges, rather than global cryptocurrency markets, to provide practical suggestions for regulators, arbitrators, and diversified investors. Based on the high-frequency trading data and connectedness approach Diebold and Yilmaz (2012) and Baruník and Křehlík (2018) have proposed, we examine the connectedness matrix among representative exchanges (cryptocurrencies) statically and dynamically. Volatility spillover reveals the net transmitter and net pairwise connectedness, which can benefit cryptocurrency market participants by identifying the risk core and highly related pairs. Volatility spillover estimation is also important for regulators when formulating risk minimization strategies.

Volatility spillover is a method for measuring contagion among interlinked economies, from pairwise to system-wide. With this method, a spillover matrix is constructed to reveal which entities emit (receive) spillover to (from) others on average and in what relative contributions. A set of dynamic spillover indices can illustrate the time-varying nature of contagion risk among entities. This method has been widely applied in research on risk contagion in traditional financial markets (Diebold and Yilmaz 2012; Diebold and Yılmaz 2014), financial institutions (Diebold and Yılmaz 2014), and 21st-century technological assets (Le et al. 2021). Compared with traditional financial markets, cryptocurrencies can be listed on different exchanges (Augustin et al. 2023), which provides us with a unique market to explore how cryptocurrencies export volatility across different venues. Our empirical results can help differentiate between theoretical explanations of volatility spillovers in both traditional assets and newly developed cryptocurrencies (Liu et al. 2022). Cryptocurrencies have more volatile prices than traditional assets. This inherently volatile asset can transmit its volatility to traditional equity exchanges, commodity and foreign exchange markets, Fintech companies, and green bonds (Dyhrberg et al. 2018; Grobys and Sapkota 2019; Kumar et al. 2022; Le et al. 2021). Cryptocurrency is generally considered to have evolved into an investment rather than a medium of exchange (Maghsoodi 2023), which enhances its interconnection and contagion with traditional financial markets. Therefore, understanding the dynamics of cryptocurrency volatility spillovers is essential for managing investor risk and creating public policy.

Correlation-based measures have revealed the increasing interconnection among fast-growing cryptocurrency markets. Griffin and Shams (2020) combined clustering algorithms and capital flow analysis to reveal that Tether flows can largely explain Bitcoin prices. Scholars have also explored higher linkages among cryptocurrencies based on methodologies such as GARCH type, the detrended cross-correlation analysis correlation coefficient, and wavelet coherence (Caporale et al. 2021; Ferreira and Pereira 2019; Katsiampa et al. 2019, 2022; Qiao et al. 2020; Xu et al. 2021). The connectedness measures of Diebold and Yilmaz (2009, 2012, 2014) have been widely used to reveal the more substantial spillover among cryptocurrencies for their pairwise informative meaning and close linkage to network theory (Baruník and Křehlík, 2018). Koutmos (2018) has revealed the growing interdependence among cryptocurrencies based on the work of Diebold and Yilmaz (2009), applying the Cholesky decomposition of the covariance matrix. Yi et al. (2018) have applied the LASSO-VAR and connectedness estimation method of Diebold and Yılmaz (2014), finding the typical 52 cryptocurrencies grew closer from December 2016 to April 2018. Antonakakis et al. (2019) investigated the transmission mechanism among nine cryptocurrencies based on TVP-FAVAR and the same connectedness approach, finding that the market gradually becomes more complex. Li and Yang (2022) examined the return connectedness between leading cryptocurrencies and memecoins based on TVP-VAR, revealing that leading coins influence memecoins by falling, whereas memecoins drive leading coins by rising. Hasan et al. (2022) introduced liquidity connectedness based on Diebold and Yilmaz (2012) to explore the increasing interconnections among cryptocurrencies. Therefore, the connectedness framework of Diebold and Yilmaz (2009, 2012, 2014) can effectively reveal the risk spillover mechanism of cryptocurrencies in the time domain.

The decomposition of volatility spillover into the frequency domain can provide insights for cryptocurrency market participants. Scholars have applied the modified method of Diebold and Yilmaz (2012), as proposed by Baruník and Křehlík (2018) to decompose the time-domain results into frequencies. This frequency decomposition can measure long-, medium-, and short-run connectedness to provide precise suggestions for diverse-term investors. Mensi et al. (2021) employed a frequency-decomposed connectedness network across cryptocurrencies from August 2015 to February 2019, finding heterogeneity in volatility spillovers in the short, medium, and long term. A stronger short-term volatility spillover implies asymmetry behavior in risk spillover. Kumar et al. (2022) found structural changes in volatility connectedness among ten major cryptocurrencies during the COVID-19 outbreak, reporting that the short-term component of volatility connectedness increased during the COVID-19 period. Hence, the frequency-decomposed connectedness measurement proposed by Baruník and Křehlík (2018) can provide more information in the frequency domain.

Furthermore, some researchers are interested in identifying the determinants of total connectedness. Ji et al. (2019) found that the cryptocurrency trading volume, global finance, investment substitution, and market uncertainty affect cryptocurrency market integration. Andrada-Félix et al. (2020), in applying a general-to-specific stepwise modeling strategy to select the determinants of total connectedness within cryptocurrencies, have found that the cryptocurrency-specific variables covering market capitalization and trade volume of sample cryptocurrencies overwhelmingly account for total connectedness. Charfeddine et al. (2022) introduced a linear regression model to investigate the determinants of total connectedness considering the trading volume of cryptocurrency, traditional macroeconomic and financial factors into consideration. The abovementioned studies indicate that the total connectedness in cryptocurrency volatility spillovers is sensitive to financial and macroeconomic indicators. However, these studies neglect the influence of Internet concern and the underlying technology. Social media activity and blockchain performance can significantly affect the cryptocurrency market significantly (Ante 2023; Pagnotta 2021; Shen et al. 2019). Our research considers the effects of Internet concern and blockchain-related technical indicators on the total volatility connectedness of both cryptocurrencies and exchanges. We find that these indicators have diverse effects on the volatility spillovers of different exchanges (cryptocurrencies), supporting the argument that Internet concern and blockchain-related characteristics can influence cryptocurrency markets (Ante 2023; Hoang and Baur 2022).

Our study has two research objectives. The first objective is to examine the heterogeneity of cryptocurrency volatility spillovers and the exchange volatility spillovers. Heterogeneity could exist in different exchanges serving as volatility emitters or receivers in one cryptocurrency market and could be the same portfolio expressing various volatility connectedness in different exchanges. Based on high-frequency trading data acquired from Kaiko, we select six liquid cryptocurrencies (Bitcoin, Ethereum, Ripple, Litecoin, Stellar, and EOS) and four representative exchanges (Binance, OKEx, Coinbase, and Bitfinex). We use the connectedness measurement framework proposed by Diebold and Yilmaz (2012) and Baruník and Křehlík (2018) to estimate the volatility spillover in the time and frequency domains. The second objective is to explore the determinants of total connectedness obtained from estimating the volatility spillover of cryptocurrencies and exchanges. The sample period is from April 13, 2019, to January 24, 2021, which includes January 2021, when Bitcoin smashed its 2020 price record, and March 2020, when Bitcoin experienced an extreme price plunge. Our empirical findings provide insights into the volatility spillover heterogeneity of exchanges.

We address that cryptocurrencies in the same portfolio express various volatility spillovers in different exchanges. On one exchange, the selected cryptocurrencies are highly interconnected with an average total connectedness of 76.12%. The difference in volatility spillover among the four exchanges exists in XRP, which plays a net receiver role in Coinbase, but a net contributing role in the other three exchanges. The analysis based on Baruník and Křehlík (2018) reveals the frequency decomposition of cryptocurrency volatility spillover. Low frequency constitutes most of the total connectedness, indicating that investors’ anticipation dominantly and durably influences spillovers. For the total connectedness in cryptocurrency volatility spillovers, the Internet concern of ETH, electricity prices in the US, and global economic uncertainty significantly affect the total connectedness.

Furthermore, we reveal the heterogeneity of exchange volatility spillovers across different cryptocurrency markets. In the six selected cryptocurrency markets, four exchanges are highly connected, with 74.7% total connectedness on average. Regarding the role exchanges play in the six coins, Coinbase continues to be the net contributor, whereas OKEx continues to be the net receiver. Bitfinex and Binance shift their contributing or receiving roles in distinct cryptocurrencies. The largest net contributors differ across the six sample cryptocurrency markets. Low frequency accounts for most of the total connectedness, and an exchange can change its emitting or receiving role with frequency and time variance. The most significant net trigger for the six cryptocurrencies also varies over time. We apply stepwise regression to select the relevant empirical determinants of total connectedness in exchange volatility spillovers. Three Proof-of-Working (PoW) coins have different indicators. BTC’s total volatility connectedness is affected by exchange returns and trading volumes. In addition to the above variables, the macroeconomic effect, volatility of some exchanges, and technical indicators of ETH are also determinants of ETH’s total volatility connectedness. LTC’s total volatility connectedness shows persistence in the time series and is determined by the Internet concern of OKEx and LTC.

Our study contributes to the literature in two ways. First, we examine the heterogeneous volatility spillovers in the cryptocurrency market, in which the same assets listed on different venues are widely seen. This characteristic distinguishes cryptocurrency markets from traditional financial markets and provides a perfect market for examining heterogeneity in volatility spillovers from the perspective of specific exchanges. Based on 5-min high-frequency data, we explore the dynamic contagion features among cryptocurrencies and exchanges in the time and frequency domains. Crisis-sensitive volatility spillover bursts imply that distinct exchange-specific events can drive cryptocurrency and exchange volatility spillovers. Second, we enrich our understanding of the determinants of total volatility spillover in the cryptocurrency market from an exchange-based perspective. We investigate the influence of Internet concern and blockchain performance on the total volatility connectedness of both cryptocurrencies and exchanges. The different mechanisms of determinants affecting the total volatility connectedness across different venues highlight the heterogeneity in cryptocurrency and exchange volatility spillovers.

Our findings reveal the heterogeneity among exchanges in volatility spillover, which has several implications for investors and supervisors. Investors should consider the heterogeneity of volatility spillovers in the cryptocurrency market. The potential risk exchange for different coins or the most volatile assets on different exchanges can be diverse. Investors are urged to consider exchange-specific events that can influence cryptocurrency volatility spillovers at a specific venue. Moreover, the increasing popularity of cryptocurrency trading and dramatic pricing volatility have attracted the attention of regulators. On March 9, 2022, US President Biden signed an executive order to regulate cryptocurrencies and conducted a study on US Central Bank Digital Currency (CBDC).Footnote 2 Supervisors can understand the volatility spillovers of cryptocurrencies or exchanges, which is beneficial for mitigating contagion-related risks and digital currency usage (Iqbal et al. 2021; Yousaf and Ali 2020). The heterogeneous influence of factors on total volatility spillover can also inform investment decisions and policymaking. Investors should note that unregulated exchanges substantially affect exchange volatility spillovers in the BTC market. Investors and regulators must distinguish among the effects of traditional financial market factors on cryptocurrency volatility spillovers. Although the MSCI World index and S&P 500 index are stock market indicators, the prices of large- and mid-cap stocks across countries with developed markets can mitigate cryptocurrency volatility connectedness, whereas an increase in the price of large-cap stocks in the US can aggravate the connectedness of cryptocurrencies in the four exchanges. Higher Internet concern of ETH can decrease investors’ fear of cryptocurrency uncertainty. Developers and regulators are encouraged to promote the widespread adoption of well-developed blockchain trading architecture to foster a cryptocurrency market and enhance investor confidence. The positive relationship between electricity prices and the total connectedness of exchanges underlines the need for a more efficient consensus to decouple energy consumption from the cryptocurrency market.

The remainder of this paper is organized as follows. Sect. “Methodology” introduces the connectedness calculation approach based on Diebold and Yilmaz (2012) and Baruník and Křehlík (2018). Sect. “Data and preliminary analysis” presents the empirical data and provides an overview of the heterogeneity of cryptocurrency volatility across exchanges. Sect. “Empirical results” explores the volatility spillovers among different cryptocurrencies on specific exchanges, based on the connectedness decomposition matrix and network. The exchange volatility spillovers for the selected coins is also examined. Furthermore, we explore the factors affecting total connectedness. Finally, Sect. “Conclusion” summarizes the findings and provides some insights.

Methodology

This study applies time- and frequency-domain connectedness measurement approaches to analyze connectedness (Baruník and Křehlík, 2018; Diebold and Yilmaz 2012). Diebold and Yilmaz (2012) proposed a framework for conceptualizing and empirically measuring volatility connectedness from pairwise to system-wide levels, based on variance decomposition. Then, Baruník and Křehlík (2018) modified this framework for measuring connectedness by introducing heterogeneous frequency responses to shocks. These two connectedness measurement frameworks are widely used to reveal spillover mechanisms (Andrada-Félix et al. 2020; Shahzad et al. 2021; Yarovaya et al. 2016; Zhang and Hamori 2021).

Estimation of shocks in the time and frequency domains

For the time-domain connectedness estimation, Diebold and Yilmaz (2012) have introduced a generalized forecast error variance decomposition (GFEVD) into the vector autoregression (VAR). Estimating the forecast error variance decomposition (FEVD) from generalized vector autoregression paves the way for computing connectedness.

Assume a stationary covariance K-variable VAR (p) model as follows:

$$y_{t} = \sum\limits_{i = 1}^{p} {\Phi_{i} y_{t - i} } + \varepsilon_{t} ,$$
(1)

where \({\text{y}}_{t}\) is the \(K \times 1\) vector of the sample cryptocurrency realized volatility at time t, and \(\Phi_{i}\) is the \(K \times K\) autoregressive coefficient matrix. The vector of error terms \(\varepsilon_{t}\) is assumed to be white noise with a possible non-diagonal covariance matrix \(\Sigma\). Equation (1) can be transformed into a moving average (\(MA(\infty )\)) representation, which is represented as follows:

$$y_{t} = \Psi (L)\varepsilon_{t} ,$$
(2)

where \(\Psi (L)\) is a \(K \times K\) coefficient matrix of infinite lag polynomials subjected to recursion of the form \(\Phi (L) = [\Psi (L)]^{ - 1}\). By combining the moving-average framework with the GFEVD proposed by Koop et al. (1996) and Pesaran and Shin (1998), the variance decomposition is independent on the order of the variables. The H-step-ahead GFEVD is expressed as follows:

$$\theta_{jk}^{H} = \frac{{\sigma_{kk}^{ - 1} \sum\nolimits_{h = 0}^{H} {\left( {(\Psi_{h} \Sigma )_{jk} } \right)^{2} } }}{{\sum\nolimits_{h = 0}^{H} {(\Psi_{h} \Sigma \Psi_{h}^{\prime} )_{jj} } }},$$
(3)

where the estimation of \(\theta_{jk}^{H}\) is based on assessing the share of the forecast error variation of one entity owing to shocks arising elsewhere. \(\theta_{jk}^{H}\) denotes the directed pairwise connectedness from cryptocurrency k to cryptocurrency j at horizon H, which represents the contribution of innovations in cryptocurrency k to cryptocurrency j’s H-step forecast error variance. Its own and others’ contributions are defined by the main diagonal and off-diagonal elements, respectively, in the \(D^{H} = \left[ {\theta_{jk}^{H} } \right]\) matrix. To straightforwardly express the contribution, each element in \(D^{H}\) is standardized by the row sum, which can be expressed as follows:

$$\widetilde{\theta }_{jk}^{H} = \frac{{\theta_{jk}^{H} }}{{\sum\nolimits_{k = 1}^{N} {\theta_{jk}^{H} } }},$$
(4)

where \(\widetilde{\theta }_{jk}^{H}\) is the contribution after standardization. Therefore, \(\sum\nolimits_{k = 1}^{N} {\widetilde{\theta }_{jk}^{H} = 1}\) and \(\sum\nolimits_{j,k = 1}^{N} {\widetilde{\theta }_{jk}^{H} = N}\).

Regarding the frequency-domain spillover measurement, Baruník and Křehlík (2018) employed the Fourier transform \(\Psi_{h} :\Psi (e^{ - i\omega } ) = \sum_{h} e^{ - i\omega h} \Psi_{h}\) (where \(i = \sqrt { - 1}\)) to decompose the time-domain model results into high, medium, and low frequencies. The generalized causation spectrum over frequencies \(\omega \in ( - \pi ,\pi )\) can be expressed as follows:

$$(f(\omega ))_{jk} = \frac{{\sigma_{kk}^{ - 1} \left| {(\Psi (e^{ - i\omega } )\Sigma )_{jk} } \right|^{2} }}{{(\Psi (e^{ - i\omega } )\Sigma \Psi^{\prime} (e^{ + i\omega } ))_{jj} }},$$
(5)

where \(\Psi (e^{ - i\omega } ) = \sum_{h} e^{ - i\omega h} \Psi_{h}\) is the Fourier transform of the impulse response, and \(\Psi_{h}\).\((f(\omega ))_{jk}\) presents the contribution of shocks in cryptocurrency k to cryptocurrency j’s spectrum at the \(\omega\) frequency and can be interpreted as within-frequency causation. To construct the decomposition of variance decompositions to frequencies, which can be globally comparable, \((f(\omega ))_{jk}\) can be weighted by the frequency share of cryptocurrency j variance as follows:

$$\Gamma_{j} (\omega ) = \frac{{(\Psi (e^{ - i\omega } )\Sigma \Psi{\prime} (e^{ + i\omega } ))_{jj} }}{{\frac{1}{2\pi }\int_{ - \pi }^{\pi } {(\Psi (e^{ - i\lambda } )\Sigma \Psi^{\prime} (e^{ + i\lambda } ))_{jj} d\lambda } }},$$
(6)

where \(\Gamma_{j} (\omega )\) implies the dominance of cryptocurrency j at the \(\omega\) frequency, which amounts to a constant value of \(2\pi\) through frequencies. The frequency band is defined as \(d = (a,b):a,b \in ( - \pi ,\pi ),a < b\). The generalized variance decomposition at frequency band d is \(\theta_{jk} (d) = \frac{1}{2\pi }\int_{a}^{b} {\Gamma_{j} (\omega )(f(\omega ))_{jk} d\omega }\). The effects over the entire range of frequency influences are defined as \((\theta_{\infty } )_{jk} = \frac{1}{2\pi }\int_{ - \pi }^{\pi } {\Gamma_{j} (\omega )(f(\omega ))_{jk} d\omega }\). The scaled generalized variance decomposition can be defined as follows:

$$\widetilde{\theta }_{jk} (d) = \frac{{\theta_{jk} (d)}}{{\sum\nolimits_{k} {\theta_{jk} (\infty )} }},$$
(7)

where \(\theta_{jk} (d)\) and \(\theta_{jk} (\infty )\) are the generalized variance decompositions at frequency band d and over the entire frequency range, respectively.

Connectedness measures

For the connectedness estimation in the time and frequency domains, the FEVD matrix can be constructed based on Diebold and Yilmaz (2012) and Baruník and Křehlík (2018). The spillover effect between the two markets and the dependency of the cryptocurrencies in the system can be estimated based on the elements in the matrix.

Net pairwise directional connectedness from j to k

\(\tilde{\theta }_{jk}^{H}\) is directed based on the definition of FEVD. The difference between \(\tilde{\theta }_{kj}^{H}\) and \(\tilde{\theta }_{jk}^{H}\) pairwise directional connectedness can reveal the net volatility spillover, which can be more informative than the “gross” pairwise directional connectedness. The net pairwise directional connectedness can be defined as follows:

$$C_{jk}^{H} = \left( {\frac{{\tilde{\theta }_{kj}^{H} - \tilde{\theta }_{jk}^{H} }}{{\sum\limits_{j,k = 1}^{N} {\tilde{\theta }_{jk}^{H} } }}} \right) \cdot 100 = (\frac{{\tilde{\theta }_{kj}^{H} - \tilde{\theta }_{jk}^{H} }}{N}) \cdot 100,$$
(8)

where \(C_{jk}^{H}\) constructs the net pairwise directional connectedness by taking the difference between \(\tilde{\theta }_{kj}^{H}\) and \(\tilde{\theta }_{jk}^{H}\) as the total variation (N). This standardization is beneficial for comparability among markets. Furthermore, the variance decompositions are networks, each entity can be considered as a node and the net pairwise directional connectedness can be regarded as a directional edge (as in \(C_{jk}^{H} > 0\), the arrow points to k from j).

Total directional connectedness from others to j and to others from k

The variance decomposition matrix can also obtain the total directional connectedness “FROM” and “TO” one market. The total directional connectedness from others to j can be calculated as follows:

$$C_{j \leftarrow \cdot }^{H} = \frac{{\sum\nolimits_{k = 1,k \ne j}^{N} {\tilde{\theta }_{jk}^{H} } }}{{\sum\nolimits_{{k,{\text{j}} = 1}}^{N} {\tilde{\theta }_{jk}^{H} } }} \cdot 100 = \frac{{\sum\nolimits_{k = 1,k \ne j}^{N} {\tilde{\theta }_{jk}^{H} } }}{N} \cdot 100,(k \ne j),$$
(9)

where \(C_{j \leftarrow \cdot }^{H}\) denotes j’s total directional connectedness FROM others.

Similarly, the total directional connectedness to others from k can be estimated as follows:

$$C_{ \cdot \leftarrow k}^{H} = \frac{{\sum\nolimits_{j = 1,k \ne j}^{N} {\tilde{\theta }_{jk}^{H} } }}{{\sum\nolimits_{{k,{\text{j}} = 1}}^{N} {\tilde{\theta }_{jk}^{H} } }} \cdot 100 = \frac{{\sum\nolimits_{j = 1,k \ne j}^{N} {\tilde{\theta }_{jk}^{H} } }}{N} \cdot 100,(k \ne j),$$
(10)

where \(C_{ \cdot \leftarrow k}^{H}\) denotes k’s total directional connectedness TO others. Overall, total directional connectedness is calculated based on the normalized elements of the generalized variance decomposition matrix.

Net total directional connectedness

For one market, the “net” volatility spillover can be found based on a comparison between the total directional connectedness from and to others. Net total directional connectedness can be calculated as \(C_{j}^{H} = C_{ \cdot \leftarrow j}^{H} - C_{j \leftarrow \cdot }^{H}\). A positive value for \(C_{j}^{H}\) indicates that market j exerts a risk-transmitting influence on the system, whereas a negative value for \(C_{j}^{H}\) implies that market j bears the spillover in the system.

Total connectedness

In addition to conveying the spillover among entities, the total connectedness of the system can be measured based on the variance decomposition matrix. Hence, we define total connectedness as follows:

$$C^{H} = \frac{{\sum\nolimits_{k,j = 1,k \ne j}^{N} {\tilde{\theta }_{{{\text{jk}}}}^{H} } }}{{\sum\nolimits_{{k,{\text{j}} = 1}}^{N} {\tilde{\theta }_{{{\text{jk}}}}^{H} } }} \cdot 100 = \frac{{1 - T{\text{r}}\left\{ {\tilde{\theta }} \right\}}}{N} \cdot 100,(k \ne j),$$
(11)

where \(T{\text{r}}\left\{ \cdot \right\}\) is the trace operator and the denominator is the sum of all elements of the \(D^{H}\) matrix. This demonstrates the integration of the entire system.

Data and preliminary analysis

Our sample data are collected from Kaiko, following Makarov and Schoar (2020). Kaiko provides actual traded prices, rather than non-tradable average prices, across multiple exchanges. These high-frequency pricing data support the estimation of actual volatility connectedness (Baur and Hoang 2022). The sample period is from April 13, 2019, to January 24, 2021, which includes the period during which Bitcoin surpassed $40,000 in January 2021 and an extreme price plunge in March 2020. The study period includes 653 observations for each exchange. To assess the volatility spillover variations among cryptocurrency exchanges, we select four exchange markets: Binance, OKEx (now known as OKX), Coinbase, and Bitfinex. As Table 1 shows, these four exchanges have a substantial market share of approximately 50.31%.Footnote 3 Although they are all centralized cryptocurrency exchanges, they differ in their acceptance of government regulations, user composition, and trading specifications. Binance is the largest cryptocurrency exchange in terms of market capitalization.Footnote 4 OKEx was initially headquartered in China; however, under a series of manipulations and regulations, it withdrew from the Chinese mainland market in 2021.Footnote 5 Bitfinex also has a substantial market share and is recognized as an important exchange for circulating the authorized stablecoin Tether (Griffin and Shams 2020). Coinbase is the largest US cryptocurrency exchange under the SEC’s regulations, whereas the others are self-regulated or unregulated (Alexander and Heck 2020; Carol et al. 2021).

Table 1 Exchanges market share

Driven by an interest in analyzing the connectedness of cryptocurrencies and exchange aspects, the existing studies choose to use exchange rates against the US dollar. However, some cryptocurrency exchanges, such as Binance and OKEx, do not support fiat USD pairs trading. The Binance and OKEx markets support Tether (USDT)-backed trading; thus, investors can make trades between USDT and other cryptocurrencies. Tether is a stable coin backed by USD reserves, and one Tether is purported to equal one underlying unit of the currency backing it (e.g., USD). This stable coin overcomes the obstacles to transacting without banking support in many cryptocurrency exchanges (Griffin and Shams 2020). We convert the USDT pairs in Binance and OKEx to the USD quoted. All cryptocurrencies in the sample exchanges are against the USD, making the prices comparable among exchanges.

In terms of cryptocurrency market capitalization on January 24, 2021, and data accessibility, we use six assets in this study: Bitcoin (BTC), Ethereum (ETH), Ripple (XRP), Litecoin (LTC), Stellar (XLM), and EOS (EOS). BTC, ETH, and LTC are mining coins based on the PoW consensus,Footnote 6 whereas XRP, XLM, and EOS are non-mining coins (Charfeddine et al. 2022). BTC is the most prominent cryptocurrency with the highest capitalization. Ethereum is a widely used blockchain development platform. ETH has become the second-most popular cryptocurrency for supporting Ethereum’s community operations. LTC is the fork of BTC; they are similar in their underlying blockchain, except for the encryption algorithm. XRP is a typical cryptocurrency that supports cross-border business payments, and airdrops based on XRP holdings are often launched. XLM was introduced to help individuals transact with different fiat currencies at low fees. EOS is based on the DPoS consensus, which can overcome the high energy consumption and low efficiency caused by PoW. These samples cover 653 daily observations for each coin in one exchange. We exclude other leading cryptocurrencies such as Polkadot and Uniswap because their available price data do not exceed half a year or are not supported in one sample exchange. The six sample cryptocurrencies express 78.35%Footnote 7 of the total market capitalization, representing the entire market.

Diebold and Yilmaz (2012) have noted that the reference universe of connectedness measurements is typically either returns or volatilities. We estimate realized volatility based on 5-min-frequency pricing data to capture the daily actual aggregated volatility. For cryptocurrency a on day t, the realized volatility (rva,t) is estimated as \(\mathop {rv}\nolimits_{a,t} = \sqrt {\mathop {\sum\nolimits_{n = 1}^{N} r }\nolimits_{a,n}^{2} }\), where N is the 5-min time interval in a day, and \(r_{a,n}\) is estimated as \(100 \times (\ln (P_{n} ) - \ln (P_{n - 1} ))\), in which \(P_{n}\) is the 5-min closing price of cryptocurrency a.

Each panel in Fig. 1 illustrates the dynamic log-realized volatility of one cryptocurrency on four exchanges during a specific period.Footnote 8 Regarding the dynamic log-realized volatility of the six cryptocurrencies, Fig. 8 illustrates that the volatility of each cryptocurrency surged to its peak on March 13, 2020, when Bitcoin lost half of its value in a two-day plunge. Figure 1 also indicates that the log-realized volatility of one cryptocurrency can be distinct among exchanges. For BTC, the log-realized volatility on Bitfinex around July 1, 2020, is lower than that of the others. On July 15, 2020, the log-realized volatility of EOS on Coinbase was higher than that of the log volatility of the other three exchanges. A significant difference in log volatility among the exchanges can also be observed in ETH in March 2020 and in LTC in June 2020. From December 2019 to early 2020, the log volatility of XLM on OKEx and Binance was lower than that on the other two exchanges. The volatility of XRP on Bitfinex was higher than that on the other three exchanges in late December 2020.

Fig. 1
figure 1

The comparison of one coin’s volatility in four exchanges during a specific period. Notes: This figure shows the log realized volatility of 6 cryptocurrencies in four sample exchanges during the selected period. a–f depicts BTC, EOS, ETH, LTC, XLM and XRP respectively. In each subgraph, the horizontal axis is time, while the vertical axis is the log realized volatility for one cryptocurrency in a specific exchange

Table 2 summarizes the statistics for the daily realized volatility of the six cryptocurrencies in the four exchanges. The most volatile coins differed across the four exchanges. The largest mean of log-realized volatility on Binance and OKEx is LTC (1.462 and 1.458, respectively), whereas on Coinbase and Bitfinex, it is XLM (1.556 and 1.565, respectively). BTC has the lowest mean. One asset in each exchange shows distinct fluctuations. Coinbase and Binance have larger realized volatility for BTC. XLM has the highest mean volatility on Bitfinex (1.565) and the lowest on OKEx (1.443). XRP, which has the highest standard deviation among the four exchanges, is above 0.56. A positive skewness value indicates that the distribution of the log-realized volatility series is asymmetric. The recorded kurtosis values for all examined series exceed the threshold of 3, which illustrates that the log-realized volatility under examination for the sample period has flatter tails than the anticipated normally distributed series shows. The augmented Dickey-Fuller (ADF) test indicates that all volatility series are stationary.

Table 2 Descriptive statistics of the log realized volatility of 6 cryptocurrencies in 4 exchanges

Empirical results

This section applies the VAR model to estimate the cryptocurrency volatility spillovers and exchange volatility spillovers. We employ the approaches discussed above (Diebold and Yilmaz 2012; Baruník and Křehlík, 2018) to calculate the direction and magnitude of connectedness in the time and frequency domains. For the frequency-domain volatility spillover, we define three frequency bands based on Cui et al. (2021): 1–5 days (one day to one week, obtained on the bands corresponding to \(d_{1} \in \left[ {3.14,0.63} \right]\)), 5–22 days (one week to one month, obtained on the bands corresponding to \(d_{2} \in \left[ {0.63,0.14} \right]\)), and 22–inf days (more than one month, obtained on the bands corresponding to \(d_{3} \in \left[ {0.14,0.00} \right]\)). The first frequency band demonstrates the shocks disturbed by market noise and abnormal events that occur in the short term (connectedness is created at a high frequency). The second frequency refers to shocks triggered by market movements arising in the medium term (connectedness has arisen at a medium frequency). The third frequency represents shocks that persist for a longer period and connectedness is created at a low frequency (Cui et al. 2021). The lag length of the VAR model is chosen using the Akaike information criterion (AIC). The 12-day forecasting horizon for variance decomposition is set based on Diebold and Yılmaz (2014).

Cryptocurrency volatility spillovers for four exchanges

Cryptocurrency volatility spillovers matrix analysis

Table 3 reports the estimated cryptocurrency volatility connectedness, which reflects the cryptocurrency market interdependence within an exchange. Panels A–D display the Diebold and Yilmaz (2012) connectedness for four exchanges in the time domain, and Panels E–P show the connectedness in the frequency domain. The jth row–kth column element in the connectedness matrix measures the assessed contribution of the innovations to market k to the forecast error variance of market j, which can be illustrated as \(C_{j \leftarrow k}^{H} = \widetilde{d}_{jk}^{H}\). The diagonal elements (jth row–jth column) present the estimations of their variance influence, which measure the percentage of the forecast error variance of market j that stems from its shocks. The last column of each panel, FROM, is estimated by the mean of row elements except the diagonal one, which demonstrates the scaled volatility spillover from all other markets. The TO row in each panel is the scaled mean of specific column elements apart from the diagonal value, which indicates the spillover to other markets. The total connectedness is bold in the matrix.

Table 3 Cryptocurrency volatility connectedness matrix for 4 exchanges in a time domain and frequency domain

The total connectedness in Panels A–D indicates that the volatility of the six cryptocurrencies is highly connected in the sample exchanges. On average, the total connectedness in the four exchanges is 76.12%. Decomposing the time domain results into three frequency bands, and the long-lasting shock effects are dominant. The total spillover for low-frequency accounts for the largest portion (90.28% on Bitfinex, 90.37% on Binance, 89.08% on Coinbase, and 89.70% on OKEx). These results are consistent with the findings of Kumar et al. (2022). This low-frequency dominance originates from investor confidence in the future (Balke and Wohar 2002) and indicates long-term connectedness (Baruník and Křehlík, 2018). Volatility is generated after a return and takes much more time to be emitted from one coin to another, which causes most volatility spillovers to develop at a low frequency (Zhang and Hamori 2021).

As for the gross directional spillovers in the time domain, LTC is the largest contributor to other cryptocurrencies in four exchanges, with over 16%. In the frequency domain, the “FROM_ABS & TO_ABS” in the Baruník and Křehlík (2018) connectedness matrix evaluates the total connectedness that is received from or contributes to the entire system in the absolute sense. “FROM_WTH & TO_WTH” measures the connectedness within the specific frequency band (Cui et al. 2021). For convenience in comparing among frequency bands and the time domain, “FROM_ABS & TO_ABS” is explained in detail. At a high frequency, BTC transmits the most in Bitfinex and Coinbase, whereas the contributions of BTC and XLM are similar in Binance and OKEx. At a low frequency, the greatest transmitter among the four exchanges is LTC. This is consistent with the results obtained in the time domain. Therefore, the largest volatility spillover emitter varies among different exchanges when the frequency domain is introduced.

Cryptocurrency volatility spillovers network analysis

Sect. “Cryptocurrency volatility spillovers matrix analysis” presents the analyses of gross connectedness. Based on directed pairwise connectedness, the net connectedness between two cryptocurrencies and the net contribution of a specific cryptocurrency on one exchange can be estimated.

Figure 2 illustrates the net pairwise directional connectedness, net emitters, and net receivers for the four exchanges in the time domain. The frequency-decomposition network is shown in Fig. 9. The magnitude and direction of cryptocurrency volatility spillovers in the four exchanges are similar, except for specific cryptocurrencies. In the four exchanges, LTC always transmits the highest net pairwise connectedness compared to BTC, which is consistent with the findings of Corbet et al. (2018). However, in contrast to the global cryptocurrency market research of Corbet et al. (2018), we consider four exchange markets. BTC is the largest net receiver. LTC is the dominant contagion source in the four sample exchanges, which is consistent with the findings of Mensi et al. (2021), Bouri et al. (2021), Ji et al. (2019), and Zięba et al. (2019). Unexpected shocks in LTC can export possible future uncertainty to other cryptocurrencies. Although LTC is considered a Bitcoin fork, their encryption algorithms differ. The underlying algorithm is relevant to the mining process. BTC depends on the SHA-256 algorithm, which requires more computational power to mine cryptocurrency. This expensive resource constrains Bitcoin distribution. Approximately 2.1% of BTC addresses hold more than one BTC in their balance.Footnote 9 Only top accounts can manipulate Bitcoin’s flow following a price downturn (Griffin and Shams 2020). Therefore, the net emitting of BTC originating from demand shocks is limited. LTC is based on the Scrypt algorithm, which is less resource-consuming. This easy mining algorithm allows for a broader distribution. Of the LTC addresses, 16.91% hold more than one LTC.Footnote 10 Shocks originating from a sudden unexpected event for LTC are widespread among investors and have spillovers to other cryptocurrencies. The difference among the exchanges is that XRP, which serves as a net receiver in Coinbase, has a net transmitting effect on the other three exchanges. This illustrates that the same asset in different exchanges can play a distinct role in volatility spillover. On different exchanges, the direction and influence of the net pairwise volatility connectedness can vary. Regarding the net pairwise connectedness of ETH and EOS, the arrow points to EOS in OKEx; however, in the other three exchanges, the edge direction is inverted. This implies that the same cryptocurrency pairs have various net effects on different exchanges.

Fig. 2
figure 2

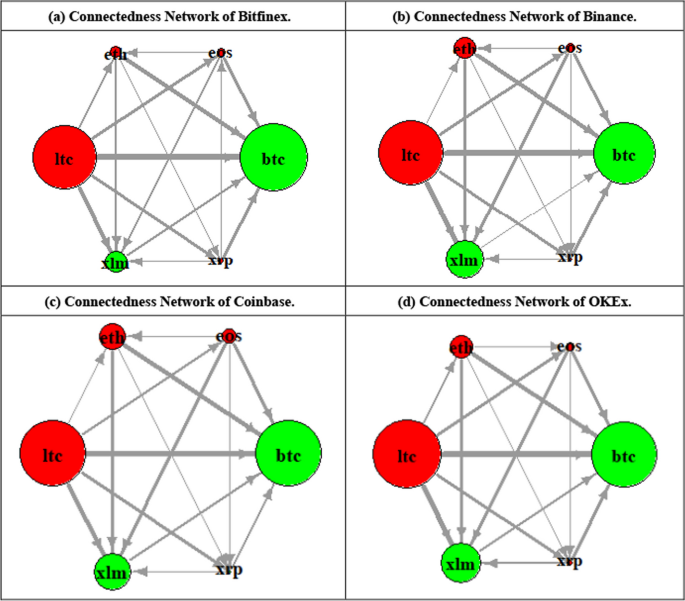

Cryptocurrency volatility connectedness network for 4 exchanges based on Diebold and Yilmaz (2012). Notes: This figure shows the cryptocurrency volatility connectedness network for 4 exchanges in the time domain. The red node in a network denotes the net emitter, which indicates that the value of net total directional connectedness is positive. The green node in a network denotes the net receiver, which means the net total directional connectedness is negative. The size of the node represents the magnitude of a net emitter to other cryptocurrencies or a net receiver from the others. The thickness of the directional arrows denotes the magnitude of the net pairwise directional volatility connectedness. The thicker the arrow, the stronger the volatility spillover. These NET indexes are measured in Table 3 based on Sect. “Connectedness measures”. The net pairwise directional connectedness is defined as Eq. (8), which can illustrate the net spillover direction between two coins

Fig. 9 introduces frequency bands to decompose the volatility connectedness network of Diebold and Yilmaz (2012) into high, medium, and low frequencies. At medium frequencies, the net connectedness of a specific cryptocurrency varies across exchanges. The LTC is a net receiver in Coinbase but acts as an emitter in the other three exchanges. At a high frequency, ETH is a net receiver in Bitfinex and Coinbase but plays a net transmitting role in Binance and OKEx. These distinctions demonstrate that investors with different investment horizons should consider the heterogeneity of cryptocurrency volatility connectedness in terms of exchange aspects.

Cryptocurrency dynamic volatility spillovers

The above static analysis summarizes the volatility spillover of the cryptocurrencies; however, the time variation in the spillover mechanism has not been considered. Figure 3 shows the dynamic total volatility spillovers of the cryptocurrencies in the time and frequency domains. The estimation window is set to 180 days (Kumar et al. 2022). This moderate estimation window ensures that the curves are neither excessively smooth nor coarse. To better understand the evolution of cryptocurrency volatility spillovers, Fig. 3 shows the S&P Cryptocurrency Top 10 Equal Weight Index (SPCC10), revealing the dynamics of the cryptocurrency market.

Fig. 3
figure 3

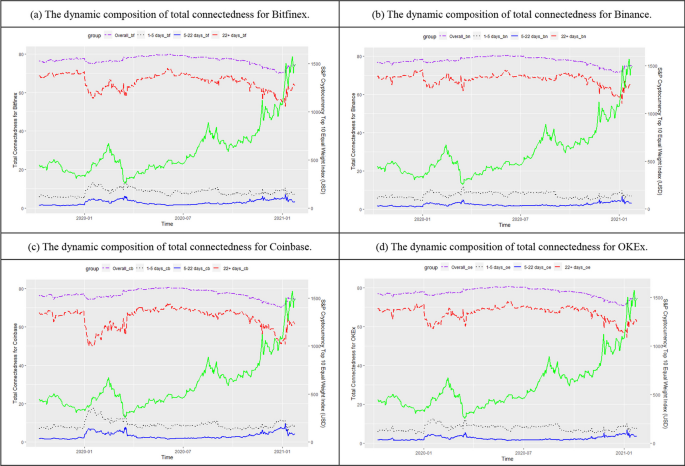

The dynamic composition of total cryptocurrency volatility connectedness for 4 exchanges. Notes: This figure illustrates the moving-window estimation of total connectedness for Bitfinex, Binance, Coinbase and OKEx in the time domain and frequency domain. The estimation window is set at 180 days (half a year). The green line is the S&P Cryptocurrency Top 10 Equal Weight Index (USD). The Overall connectedness is estimated based on Diebold and Yilmaz (2012). The total connectedness can be decomposed into 1–5 days, 5–22 days and 22 + days terms based on Baruník and Krehlík (2018), corresponding to high-frequency, medium-frequency and low-frequency band respectively

As Fig. 3 shows, the evolution and composition of overall connectedness for the four exchanges display both similarities and distinctions. The overall cryptocurrency volatility spillover for four exchanges fluctuates over the sample period, ranging approximately between 70 and 80%. For the four exchanges, the total low-frequency connectedness accounts for most of the overall connectedness. The overall connectedness of the four exchanges declined in January 2020 and from July 2020 to January 2021, driven by the decline in low-frequency connectedness. The analysis period can be divided into two phases combined with the SPCC10. Before July 2020, the dynamics of the SPCC10 and low-frequency connectedness were similar. Subsequently, total connectedness decreased from 80% to a minimum of 71%. Thus, the evolution of the SPCC10 is inverse to that of low-frequency connectedness.

To reveal the evolution of one cryptocurrency’s role in the volatility spillover of cryptocurrencies for different exchanges, the net connectedness results for sample cryptocurrencies are conducted. Figure 4 shows a dynamic comparison of net directional connectedness in the time domain. As demonstrated in Sect. “Connectedness measures”, positive values indicate that this cryptocurrency in a specific exchange serves as a net transmitter, whereas negative values indicate that this cryptocurrency serves as a net receiver.

Fig. 4
figure 4

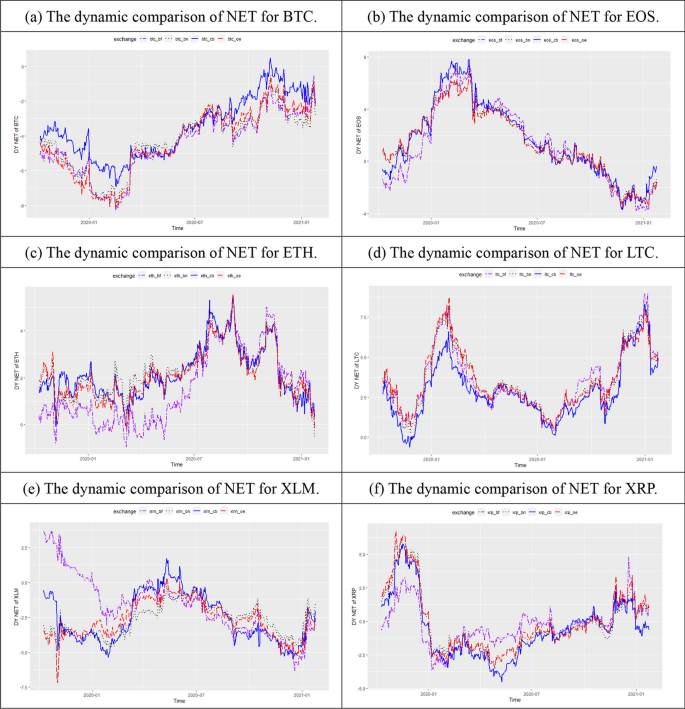

The dynamic comparison of one cryptocurrency’s net directional connectedness in 4 exchanges. Notes: This figure shows the dynamic comparison of NET connectedness for each cryptocurrency in 4 exchanges. The NET index is the moving-window estimation based on Diebold and Yilmaz (2012) in the time domain. The estimation window is set at 180 days (half a year). The positive values indicated that this cryptocurrency in a specific exchange serves as the net transmitter, while the negative values mean that this coin serves as the net receiver

Figure 4 indicates that some cryptocurrencies have the same role in spillover, while other cryptocurrencies switch their roles over time. The different roles of the same cryptocurrency on the four exchanges are revealed. For most of the research period, BTC served as a net receiver, except for on Coinbase, where BTC became a net emitter from November 7–9, 2020. A similar situation also occurred for LTC, which is always a net emitter, except for when it was the net receiver on Coinbase in November 2019. ETH persistently acts as the net contributor on the four exchanges, except for the oscillation around zero on Bitfinex before July 2020.

Exchange volatility spillovers for six cryptocurrencies

Exchange volatility spillovers matrix analysis

As shown in Fig. 8, the same asset shows varying volatility among exchanges. For arbitrageurs and regulators, identifying the most dominant volatility-transmitting exchange for one cryptocurrency is noteworthy. Table 4 presents the volatility connectedness. Panels A–F show the results for exchange volatility connectedness for the six coins using the framework of Diebold and Yilmaz (2012). Panels G–X are the results for the frequency decomposition of the time domain table based on the framework of Baruník and Křehlík (2018). The average total volatility connectedness for the six coins is 74.7%. This illustrates that the four exchanges are closely connected. Low frequency accounts over 86% for the volatility spillover of six coins, indicating that the volatility spillover transmissions among the exchanges for the six coins mainly comprise long-term market factors. The FROM and TO of the four exchanges show similarities in the specific cryptocurrency market. This finding demonstrates that the contributing and receiving roles of different exchanges on a specific cryptocurrency market are approximately equivalent.

Table 4 Exchanges’ volatility connectedness matrix for 6 coins in the time domain and frequency domain

Exchange volatility spillovers network analysis

Figure 5 illustrates the exchange volatility spillovers network for six cryptocurrencies based on Diebold and Yilmaz (2012). The frequency domain results based on Baruník and Křehlík (2018) are shown in Fig. 10. The meanings of the nodes and edges are the same as those in Fig. 2.

Fig. 5
figure 5

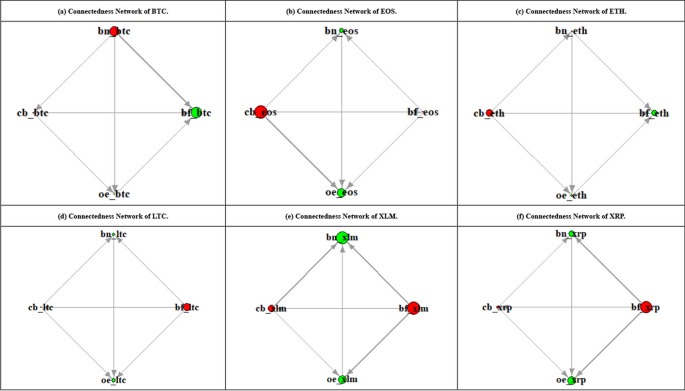

Exchange volatility connectedness network for 6 coins based on Diebold and Yilmaz (2012). Notes: This figure shows the exchange volatility connectedness network for 6 coins in the time domain. The red node in a network denotes the net emitter, the green node denotes the net receiver. The size of the node represents the magnitude of a net emitter to other exchanges, or a net receiver from the others. The thickness of the directional arrows denotes the magnitude of the net pairwise directional volatility connectedness

Figure 5 shows the distinct volatility spillover roles of exchanges in different cryptocurrency markets. Bitfinex and Binance play diverse spillover roles for these six cryptocurrencies. Coinbase plays a net contributing role, whereas OKEx always acts as a net receiver. This may be explained by the economic environment of these two exchanges are located. We can map the US stock market onto Coinbase and regard the Chinese stock market as OKEx. It has been shown that the established US market has strong volatility spillovers to the emerging Chinese market. Therefore, in the cryptocurrency market, Coinbase continues to emit shocks and OKEx receives them.

The largest net emitters can be identified among the market participants. Binance is the largest net emitter for BTC. Coinbase is the largest net transmitter for EOS and ETH. Bitfinex exerts the highest net contributing effect for XRP, which is inconsistent with its volatility discovery leading effect found by Dimpfl and Elshiaty (2021). Fig. 10 shows that exchanges can change their net effects according to frequency. Taking BTC as an example, as the frequency decreases, Coinbase shifts from a net receiver to a net emitter, whereas OKEx acts contrarily. The net pairwise spillover magnitude and direction reveal the spillover path, which provides asset allocation suggestions for the arbitrager and a regulating focus for the supervisor. For BTC, the net pairwise volatility connectedness transmitted from Binance to Bitfinex is the largest, implying a strong correlation. However, for XLM, the inverse path has the largest spillover magnitude. The strongest net connectedness pairs can also be identified in other cryptocurrency markets.

Exchange dynamic volatility spillovers

Figure 6 illustrates the time-varying frequency decomposition of the total exchange volatility spillover index for BTC, EOS, ETH, LTC, XLM, and XRP.Footnote 11 The connectedness decomposition into three frequency bands is shown in each panel. The price of each cryptocurrency is displayed as a green line in each panel.

Fig. 6
figure 6

The dynamic composition of total exchange volatility connectedness for 6 coins. Notes: This figure illustrates the moving-window estimation of total connectedness for BTC, EOS, ETH, LTC, XLM, and XRP in the frequency domain. The estimation window is set at 180 days (half a year). The total connectedness decomposed into 1–5 days, 5–22 days, and 22 + days terms are estimated in the same way as Fig. 3. The green line in each panel is the specific cryptocurrency price in USD

For the six coins, the dynamic spillovers in the frequency domain change remarkably, although, in Fig. 11, we capture the same comprehensive system stability as Ji et al. (2021) and Kumar et al. (2022). The cryptocurrency crash on March 12, 2020, brought about a peak of low-frequency connectedness. In contrast, low-frequency connectedness was relatively stable when the prices of BTC, LTC, ETH, and XLM reached a record high and volatile level and XRP dropped in January 2021.

Figure 7 shows that, in a specific cryptocurrency market, the volatility spillover role of one exchange can be maintained or shift dynamically. Exchanges, which are the greatest net contributors, vary over time. Regarding the BTC market, as shown in Fig. 7, Bitfinex retains its net receiver role. Binance remains a net emitter, except for during a short period. When BTC is under price pressure, Bitfinex prints Tether to purchase BTC to manipulate prices, and BTC flows from major Tether-based exchanges, such as Binance (Griffin and Shams 2020). BTC outflows from Binance spread volatility. A large inflow of BTC to Bitfinex creates an avenue for receiving spillovers. In ETH, Bitfinex started as a net emitter and then became a prominent net receiver until September 2020. The salient receiving effect may be attributed to optimistic traders on Bitfinex’s Ethereum market. A strong inflow of Ethereum longs in March 2020.Footnote 12 In May 2020, the number of ETH long positions on Bitfinex rocketed to over 1.6 million contracts, which is more than three times that at the start of 2020.Footnote 13 For XRP, on December 19, 2020, the net directional connectedness of exchanges surged (or plummeted). From November 25 to December 6, 2020, four exchanges announced that they would successively support the Spark Airdrop Program for XRP holders.Footnote 14 The airdropped SPARK amount is calculated based on the amount of XRP held by users. In addition, Bitfinex promotes more XRP products. For example, Bitfinex users can use XRP as collateral to obtain loans in USDT or USD on Bitfinex Borrow,Footnote 15 and Bitfinex introduces XRP/USDT trading pairs.Footnote 16 These exchange-specific events accumulate as greater shocks to Bitfinex, resulting in prominent volatility emitting.

Fig. 7
figure 7

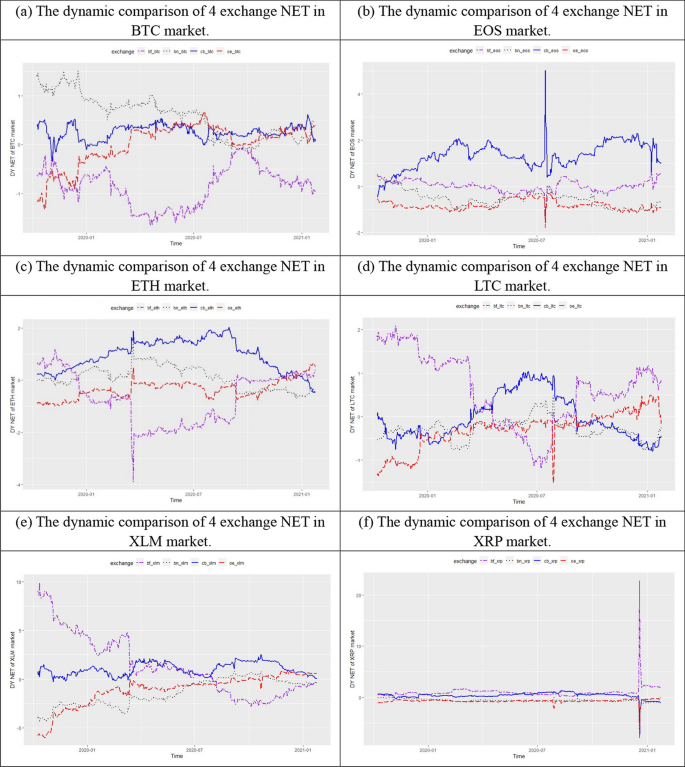

The dynamic comparison of 4 exchange net directional connectedness in 6 cryptocurrency markets. Notes: This figure shows the dynamic comparison of 4 exchanges’ NET connectedness for each cryptocurrency market. The estimation of NET index, estimation window and the value implications are same as Fig. 4

Determinants of the cryptocurrency and exchange total volatility spillover

Exploring the determinants of total connectedness in cryptocurrency or exchange volatility spillovers is essential for market participants. Here, we consider the influence of cryptocurrency (exchange) importance in the financial market and network, macro-financial influence, the investment substitution effect, and the uncertainty effect to explain the total connectedness in cryptocurrency and exchange volatility spillovers.

Determinants of the total connectedness in cryptocurrency volatility spillovers

Following Ji et al. (2019), Andrada-Félix et al. (2020), Charfeddine et al. (2022), Demiralay and Golitsis (2021), and Liu and Tsyvinski (2020), we construct a linear regression model to explore the determinants of total connectedness in cryptocurrency volatility spillovers. For each exchange, we construct the following model:

$$\begin{aligned} Total_{t} & = \beta _{0} + \alpha _{1} Total_{{t - 1}} + \alpha _{2} RES\_LTC_{{t - 1}} + \alpha _{3} RES\_XLM_{{t - 1}} + \alpha _{4} Vol\_LTC_{{t - 1}} \\ & \quad + \alpha _{5} Vol\_XLM_{{t - 1}} + \alpha _{6} Vol\_XRP_{{t - 1}} + \alpha _{7} PV\_ETH_{{t - 1}} + \alpha _{8} MSCI\_World_{{t - 1}} \\ & \quad + \alpha _{9} SP500_{{t - 1}} + \alpha _{{10}} LMBA\_Gold_{{t - 1}} + \alpha _{{11}} GEPU_{{t - 1}} + \alpha _{{12}} Ele\;Price_{{t - 1}} + \mu _{t} \\ \end{aligned}$$
(12)

where \(Total_{t}\) is the total connectedness for an exchange, which is obtained in Sect. “Cryptocurrency dynamic volatility spillovers”. \(RES\) is the simple return, which is estimated in \(100\% \times [(P_{t} - P_{t - 1} )/P_{t - 1} ]\). \(Vol\) is a cryptocurrency’s trading volume in one exchange, which excludes coin-to-coin trading due to limited liquidity (Makarov and Schoar 2020). The simple return and trading volume for LTC are involved in its largest net emitting effect. Considering the growing liquid and dominance of ETH (Kumar et al. 2022), the Wikipedia search for the keyword “Ethereum” is included and denoted by \(PV\_ETH\). The sample period is set from September 12 to December 2, 2020, when the trend of cryptocurrency total connectedness in the four exchanges decreased but the SPCC10 index increased. During this period, the XLM simple return varies and the XRP trading volume slowly increases for its Airdrop promotion; therefore, we add \(RES\_XLM\), \(Vol\_XLM\), and \(Vol\_XRP\) to the model. To control for the influence of the macroeconomy and traditional finance market, we introduce the MSCI World index, S&P500 index, LBMA Gold price, Global Economy Policy Uncertainty, and electricity prices in the US. Following Andrada-Félix et al. (2020), we also consider the one-period lag of Total connectedness in the independent variables. All independent variables are logged (except RES) and lagged by one period in the regression. Based on Liew et al. (2022), Eq. (12) is estimated in OLS with heteroscedasticity and an autocorrelation-corrected (HAC) standard error on daily data. Table 5 shows the regression results.

Table 5 The determinants of net connectedness in four exchanges

Table 5 shows the determinants of total connectedness for four exchanges. The significant coefficient of the lagged dependent variable implies high persistence in the dynamic total cryptocurrency connectedness series. For traditional financial market factors, notably, the lagged MSCI World index exhibits a negative effect on the four exchanges, whereas the lagged S&P 500 index and LBMA_Gold have positive effects. This indicates that the traditional financial market affects volatility spillover in the cryptocurrency market. An increase in the prices of large- and mid-cap stocks across developed-countries can mitigate the uncertainty connectedness of cryptocurrencies. An increase in the prices of gold and large-cap equities in the US can aggravate the connectedness of cryptocurrencies in the four exchanges. ETH’s pageviews on Wikipedia is negative for total connectedness in the four exchanges. This implies that the rising Internet concern about ETH, relative to the widely accepted cryptocurrency development platform Ethereum, can alleviate investors’ suspicions regarding uncertainty in the cryptocurrency market. Global economic uncertainty is significantly positive to total connectedness in four exchanges, which is consistent with Demiralay and Golitsis (2021). This indicates that rising economic policy uncertainty increases the interlinkage of cryptocurrencies on one exchange. Electricity prices in the US show a significant positive influence on the total connectedness in the four exchanges, which supports Liu and Tsyvinski (2020) and indicates that cryptocurrency productional factors affect the cryptocurrency market. This is consistent with Hayes (2017), in that the rising costs of mining cryptocurrencies drive the prices of volatile cryptocurrencies.Footnote 17

Determinants of the total connectedness in exchange volatility spillovers

In this section, we identify the potential drivers of the detected dynamic total connectedness in the three PoW-consensus cryptocurrencies.Footnote 18 No consensus has been reached on the determinants of exchange volatility spillovers for one cryptocurrency. Therefore, we introduce relevant variables and adopt a stepwise regression to select the determinants, as in Andrada-Félix et al. (2020). The set of potential drivers is mainly based on research on total connectedness among cryptocurrencies, which includes the lagged dependent variable, macroeconomic variables, traditional financial markets, and exchange- and cryptocurrency-specific variables (Andrada-Félix et al. 2020; Demiralay and Golitsis 2021; Ji et al. 2019).Footnote 19 Blockchain links cryptocurrency trading across exchanges for BTC, ETH, and LTC (Baur and Dimpfl 2020). On-chain trading is affected by underlying technical indicators. We introduce some technical indicators to explain the total connectedness among exchanges.

Table 6 summarizes the stepwise regression results for three PoW cryptocurrencies. The first two columns show the actual and predicted means of the dependent variables, respectively. The predicted means are close to the actual values in the three panels, demonstrating the good forecasting power of the stepwise models.

Table 6 Predicted power and relative contributions of explanatory variables

Stepwise regression empirically assessed the relevance of different determinants to the total connectedness of the three PoW coins. The exchange total volatility spillover of BTC is explained by the exchange return (48.72%) and exchange trading volume (51.82%). OKEx showed a highly aggregated contribution, accounting for 52.49% of the total contribution. This confirms OKEx’s influence on BTC markets’ volatility spillover, which expands the research of Alexander and Heck (2020) and reveals that unregulated exchanges strongly lead to price discovery in the BTC market. The macroeconomy, exchange volatility, and technical indicators of ETH can also explain the changes in the total volatility connectedness for ETH. Ethereum-mining requires large energy input (Krause and Tolaymat 2018). A doubled hash rateFootnote 20 implies that ETH-mining becomes more dependent on energy consumption. The stepwise regression results indicate that higher energy costs for mining ETH can increase future market uncertainty. The average block time of ETH is 0.2 min, which is shorter than that of BTC at 10 min or LTC at 2.5 min. This lower latency can advance the correlation among exchanges (Baur and Dimpfl 2020), making the ETH market more interdependent. The lagged dependent variable contributes almost 50% to the total volatility connectedness of LTC, implying high persistence in this time series. The optimal regression model and contributions of each category differ across the three panels. The determinants of exchange volatility spillovers for different cryptocurrencies are inconsistent.

Conclusion

It is acknowledged that cryptocurrencies can cross-list on different exchanges. However, the heterogeneity of exchanges in volatility spillover has been overlooked. Therefore, this study focuses on specific exchanges rather than the global market. Based on high-frequency trading data covering April 13, 2019, to January 24, 2021, we investigate cryptocurrency volatility spillovers and exchange volatility spillovers based on 653 daily observations. We select Bitcoin, Ethereum, Ripple, Litecoin, Stellar, and EOS as six representative cryptocurrencies (expressing 78.35% of the total market capitalization), and four typical exchanges, including Binance, OKEx, Coinbase, and Bitfinex (accounting for approximately 50.31% of the market share). We adopt the connectedness measurement proposed by Diebold and Yilmaz (2012) and Baruník and Křehlík (2018) to estimate the interconnection in the time and frequency domains. We construct a linear regression model to explore the determinants of total connectedness in cryptocurrency volatility spillovers and exchange volatility spillovers.

Our study shows the heterogeneity of exchanges in terms of volatility spillover. First, we reveal the heterogeneity of cryptocurrency volatility spillovers in different exchanges. Regarding cryptocurrency volatility spillovers for the four exchanges, the selected cryptocurrencies are highly interconnected within one exchange. The average total connectedness for the four exchanges is 76.12%, with the low frequency being the majority. This is determined by volatility generation and reveals that investor anticipation is essential for cryptocurrency volatility spillovers. The cryptocurrency net spillover magnitude and direction are similar on the four exchanges. LTC–BTC has the strongest correlation among the four exchanges, and the net spillover direction is from LTC to BTC. This highly relative spillover pair can provide suggestions for investors and regulators. Owing to the different underlying encryption algorithms, BTC emerges as the principal net receiver and LTC is the contagion core in the four exchanges. XRP plays different roles in distinct exchanges: a net receiver in Coinbase but a net contributor in the other three exchanges. This finding addresses different risk emitters in sample exchanges for regulators. For the same asset, XRP, regulators should consider its possible volatility emitting in Binance, Bitfinex, and OKEx. Across the frequency domains, the net emitting effect of one cryptocurrency among the exchanges is different. Thus, it would be appropriate for investors with different investment horizons to consider the heterogeneity of cryptocurrency volatility connectedness from an exchange perspective. Considering the time variation in cryptocurrency volatility spillovers, the overall connectedness of the four exchanges decreased in Jan. 2020 and then again later in 2020. The steep declines in low-frequency band connectedness drive this decrease. In these four exchanges, some cryptocurrencies can consistently serve as either a net trigger or receiver, whereas others can change their roles over time.

Second, we examine the exchange volatility spillovers in different cryptocurrency markets to investigate the heterogeneity of exchanges. The four exchanges are highly interlinked in six cryptocurrencies, with the average total connectedness of the four exchanges at almost 75%. Low frequency accounts for the majority, implying that long-term market factors have the strongest influence on exchange volatility spillovers. Coinbase continues to play the role of the net contributor in six cryptocurrency markets, while OKEx remains the net receiver. Considering the countries of these two exchanges are located, this situation is similar to the developed US market and has strong volatility spillover to the emerging Chinese market. Binance, Bitfinex, and Coinbase are the most significant net contributors for some coins; thus, regulators should focus on the volatility spillover contributions of these three exchanges in most cryptocurrency markets. The exchange pairs with the strongest correlations differ across the six cryptocurrency markets. Therefore, arbitrators and regulators in different cryptocurrency markets should consider the heterogeneity of exchanges. As the frequency changes, exchanges can shift their emitting or receiving roles. For the evolution of total connectedness, the overall connectedness in the time domain is stable for the six cryptocurrencies; however, the decline in the low-frequency band connectedness for these cryptocurrencies occur at a different time and magnitude. The core contagion exchange for the six cryptocurrencies varies over time.

Third, we explore the determinants of total connectedness. We construct a linear regression model to explain the total connectedness in cryptocurrency volatility spillovers. The growing Internet concern regarding ETH can relieve investors’ suspicions of cryptocurrency uncertainty for four exchanges. Electricity prices in the US positively affect the total connectedness in four exchanges, which indicates that cryptocurrency production factors affect the cryptocurrency market. We apply stepwise regression to select the determinants of total connectedness in exchange volatility spillovers. Some exchange returns and trading volumes account for BTC’s total volatility connectedness. For ETH, the macroeconomic influence, volatility of some exchanges, and technical indicators of ETH can also affect its total connectedness. LTC’s total volatility connectedness shows persistence in its time series and is influenced by the Internet concern of OKEx and LTC.

Cryptocurrencies can be listed on different exchanges simultaneously, which provides a perfect market in which to explore the heterogeneity of volatility spillovers, revealing risk contagion among assets. Our findings suggest that market participants should consider the heterogeneity of exchanges, which can be expressed through cryptocurrency pricing and volatility spillover mechanisms. Investors should note that a single asset cannot continue to serve as a safe haven in every exchange. Volatility-hedging portfolios may vary across exchanges. Likewise, venues can exhibit different risk features depending on the cryptocurrency market, given an exchange-specific crisis. Investors also need to distinguish between the determinants’ influences on volatility spillovers. Supervisors should identify the precise source of contagion within the scope of the exchange rather than looking at the global market alone. In addition, more efficient and environmentally friendly blockchain trading architecture is urgently needed.

Future research should explore the determinants of volatility connectedness for cryptocurrencies or exchanges in the frequency domain. The results based on Baruník and Křehlík (2018) display the various spillovers as the frequency change, emphasizing the necessity of frequency decomposition. The distinction between market noise and fundamental value changes (Andrada-Félix et al. 2020) indicates that macroeconomic or cryptocurrency-specific factors might influence specific frequency bands differently. Therefore, future research should also consider frequency differences.

Availability of data and materials

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Notes

  1. We use the terms “volatility spillover” and “volatility connectedness” interchangeably.

  2. https://www.whitehouse.gov/briefing-room/statements-releases/2022/03/09/fact-sheet-president-biden-to-sign-executive-order-on-ensuring-responsible-innovation-in-digital-assets/ [Accessed on 2020–5-22].

  3. Refer to https://finance.yahoo.com/news/big-three-crypto-exchanges-handle-171755919.html, https://coinranking.com/exchanges [Accessed on 2021–10-12].

  4. Refer to https://www.binance.com/en-GB/blog/ecosystem/%E2%80%8Bwhat-is-kyc-or-identity-verification-and-how-is-it-increasingly-important-for-crypto-421499824684903785 [Accessed on 2022–5-22].

  5. Refer to https://www.okx.com/support/hc/zh-cn/articles/4411212179853 (in Chinese) [Accessed on 2022–5-22].

  6. ETH switched its consensus from PoW to PoS on Sep., 2022. It is acknowledged that the PoS is less energy-intensive than PoW. But in our sample period, ETH still based on PoW. Therefore, ETH is classified as one of the mining coins in this paper.

  7. The market share of different coins is from https://www.coingecko.com/en/coins/. The total market share is from https://coinmarketcap.com/historical/20210124/ [Accessed on 2021–01-25].

  8. The comparison of four exchanges’ volatility for one coin across the whole sample period is attached in the appendix.

  9. Refer to https://bitinfocharts.com/bitcoin-distribution-history.html.

  10. Refer to https://bitinfocharts.com/litecoin-distribution-history.html.

  11. The dynamic total exchanges’ volatility connectedness for 6 coins is shown in Fig. 11.

  12. Cryptoslate. Bitfinex whale “claims” $1.7 billion Ethereum long opened in March 2020. https://cryptoslate.com/bitfinex-whale-claims-1-7-billion-ethereum-long-opened-in-march-2020/ [Accessed on 2022–6-16].

  13. Bitcoinist.com. Ethereum Long Positions Hit $300 M on Bitfinex, And It Can Trigger a Major Correction. https://bitcoinist.com/ethereum-long-positions-pass-300m-bitfinex-why-this-could-end-badly/ [Accessed on 2022–6-16].

  14. Binance Announcement. Binance Will Support the Spark (SPARK) Airdrop Program for XRP (XRP) holders. https://www.binance.com/en/support/announcement/78c11feba44d443998cf7a5329539e91. [2020–11-25, Accessed on 2022–6-16],

    Bitfinex. Bitfinex Will Support Spark Airdrop Program for XRP Holders. https://www.bitfinex.com/posts/568 [2020–11-29, Accessed on 2022–6-16];

    OKx Support. OKEx to support XRP’s SPARK token snapshot and airdrop. https://www.okx.com/support/hc/en-us/articles/360053069811-OKEx-to-support-XRP-s-SPARK-token-snapshot-and-airdrop [2020–11-30, Accessed on 2022–6-16],

    The Coinbase Blog. Coinbase to support Flare Network’s Spark Airdrop. https://blog.coinbase.com/coinbase-to-support-flare-networks-spark-airdrop-5205ad889463 [2020–12-6, Accessed on 2022–6-16].

  15. Bitfinex. Bitfinex Borrow Adds XRP (XRP), Litecoin (LTC), EOS (EOS), Polkadot (DOT) as Collateral Options. https://www.bitfinex.com/posts/576 [2020–12-14, Accessed on 2022–6-16].

  16. Bitfinex. Bitfinex Adds Trading Pairs for EURt/USDt, XRP/USDt and XMR/USDt. https://www.bitfinex.com/posts/578 [2020–12-18, Accessed on 2022–6-16].

  17. We also conduct the robustness test to validate the above results in Table 11. We replace several variables. For Eq. (12), we choose log return, GEPU in current GDP, and the electricity price of the industry section in the USA to replace simple return, GEPU in PPP GDP and the electricity price for all sections, respectively. These robustness checks yield similar results.

  18. The PoW-consensus cryptocurrency can provide us with comparable and abundant indexes in the technical specifications. For PoW-consensus cryptocurrencies like BTC, ETH, and LTC, we choose average block time in minutes, hashrate, number of transactions in the blockchain, and average transaction fee in USD to measure the speed, the mining activity, the amount and the cost of the on-chain transactions. On the contrary, cryptocurrencies based on another consensus cannot be evaluated in the same way. For EOS, which is based on the DPoS consensus, its block time is set in the 0.5 s. This constant cannot reflect the time-varying on-chain trading features. XLM is based on the Stellar Consensus Protocol (SCP), and XRP is based on its unique Ledger Consensus Protocol. These two consensuses eliminate the nonce calculation, which depends on the computer capacity and is measured by hashrate. In conclusion, we only analyze the determinants of total connectedness in three PoW cryptocurrencies.

  19. In Table 10 we offer a summary of the explanatory variables used in the empirical analysis.

  20. During our sample period, the Ethereum Network Hashrate grew from 200 k to nearly 400 k. The details are based on https://etherscan.io/chart/hashrate.

References

Download references

Acknowledgements

This research was partially supported by Science and Technology Support Plan of Guizhou (Grant No. 2023-221) and National Natural Science Foundation of China (Grant no. 71771006).

Funding

National Natural Science Foundation of China (Grant no. 71771006), and Science and Technology Support Plan of Guizhou (Grant no. 2023-221).

Author information

Authors and Affiliations

Authors

Contributions

MW: Data curation, writing-original draft preparation, writing-reviewing and editing. LW: Conceptualization, supervision. HY: Conceptualization, methodology, writing-reviewing and editing, supervision.

Corresponding author

Correspondence to Haijun Yang.

Ethics declarations

Competing interests

The author declares no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Appendix

Appendix

See Figs. 8, 9, 10 and 11.

Fig. 8
figure 8figure 8figure 8

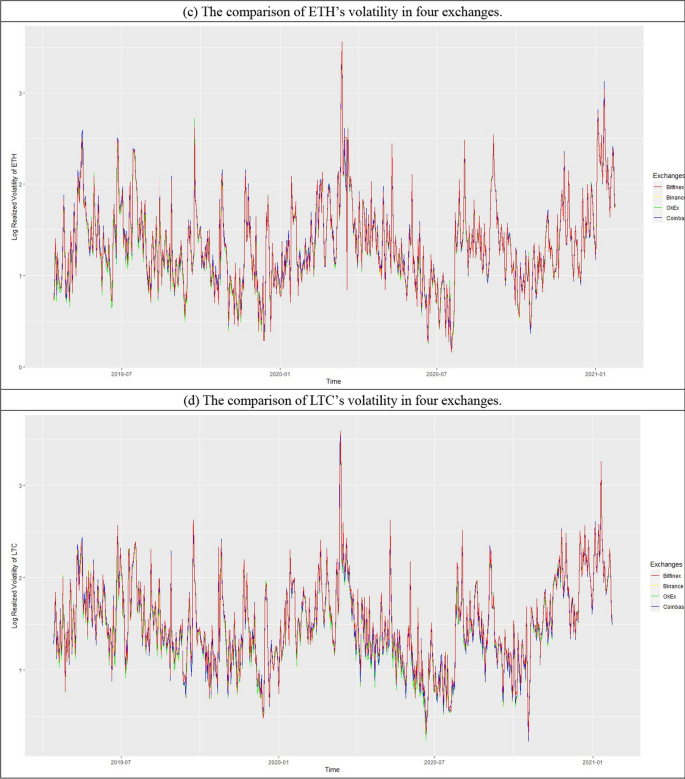

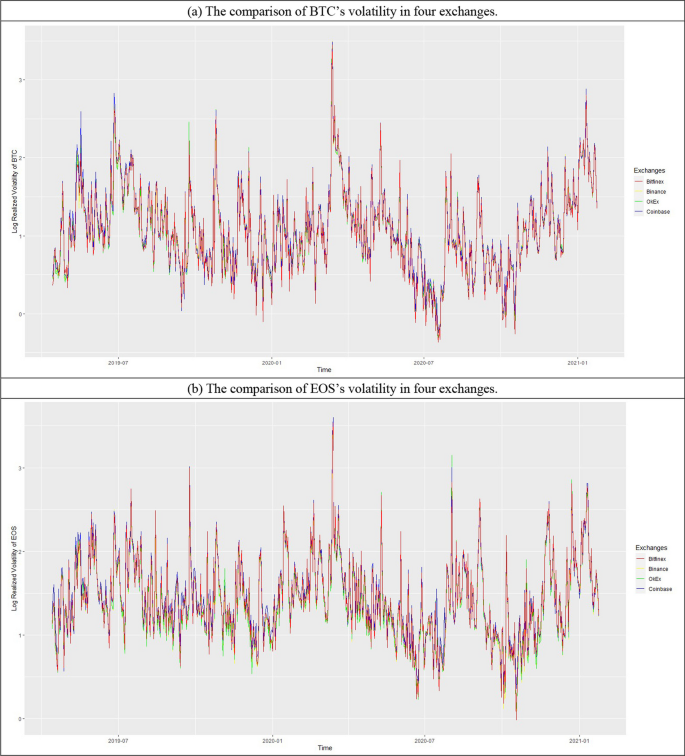

The comparison of one coin’s volatility in four exchanges. Notes: This figure shows the log realized volatility of 6 cryptocurrencies in four sample exchanges. (a)-(f) depicts BTC, EOS, ETH, LTC, XLM and XRP respectively. In each subgraph, the horizontal axis is time, while the vertical axis is the log realized volatility for one cryptocurrency in a specific exchange

Fig. 9
figure 9

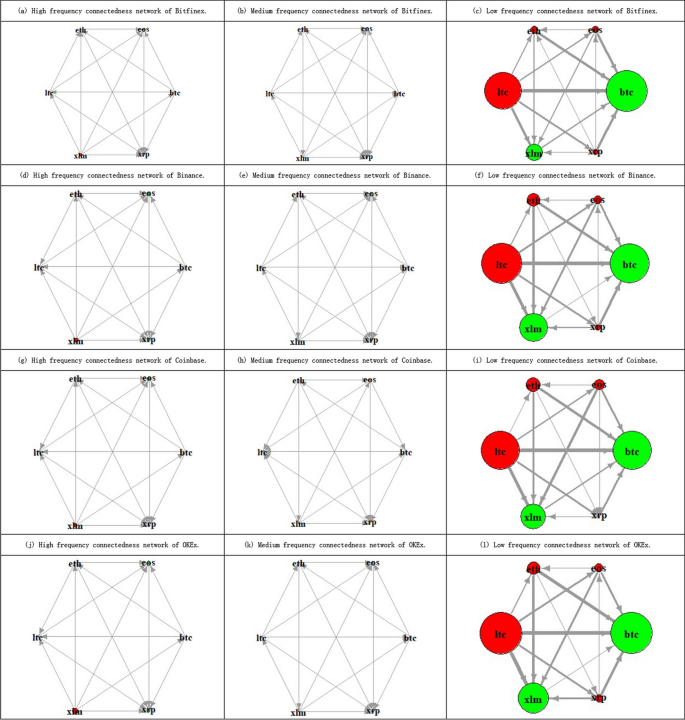

The frequency decomposition of cryptocurrency volatility connectedness network for 4 exchanges based on Baruník and Křehlík (2018). Notes: This figure shows the cryptocurrency volatility connectedness network for 4 exchanges in the frequency domain. The red node in a network denotes the net emitter, the green node in a network denotes the net receiver. The size of the node represents the magnitude of a net emitter to other cryptocurrencies, or a net receiver from the others. The thickness of the directional arrows denotes the magnitude of the net pairwise directional volatility connectedness

Fig. 10
figure 10

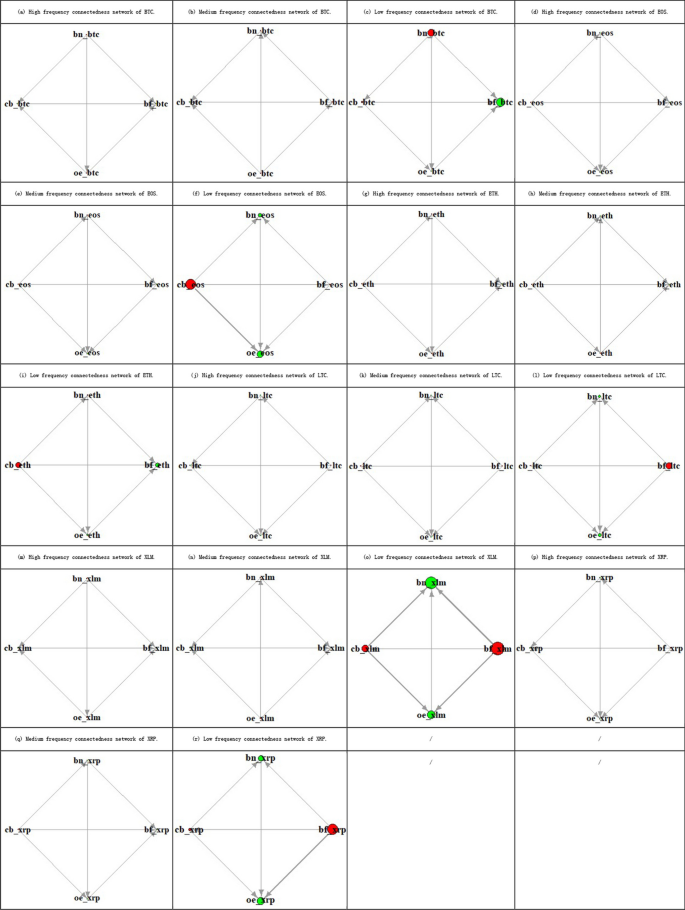

The frequency decomposition of exchange volatility connectedness network for 6 coins based on Baruník and Křehlík (2018). Notes: This figure shows the exchange volatility connectedness network for 6 coins in the frequency domain. The red node in a network denotes the net emitter, the green node in a network denotes the net receiver. The size of the node represents the magnitude of a net emitter to other exchanges, or a net receiver from the others. The thickness of the directional arrows denotes the magnitude of the net pairwise directional volatility connectedness

Fig. 11
figure 11

The dynamic total exchange volatility connectedness for 6 coins. Notes: This figure illustrates the moving-window estimation of total connectedness for BTC, EOS, ETH, LTC, XLM and XRP in the time domain. The estimation window is set at 180 days (half a year)

See Tables 78, 9, 10, 11, 12 and 13.

Table 7 Independent variables of total spillovers
Table 8 Definition of the potential drivers of total volatility connectedness among exchanges
Table 9 Definition of the potential drivers of total volatility connectedness among exchanges (continued)
Table 10 Summary statistics for variables in the regression of total connectedness
Table 11 Robust test for determinants of the total volatility connectedness for four exchanges
Table 12 Stepwise regression results
Table 13 The diagnostic tests for the spurious regression issue

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Wu, M., Wang, L. & Yang, H. Heterogeneity in the volatility spillover of cryptocurrencies and exchanges. Financ Innov 10, 85 (2024). https://doi.org/10.1186/s40854-023-00585-0

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s40854-023-00585-0

Keywords
