A chemical-reaction-optimization-based neuro-fuzzy hybrid network for stock closing price prediction

Article metrics

  • 174 Accesses

Abstract

Accurate prediction of stock market behavior is a challenging issue for financial forecasting. Artificial neural networks, such as multilayer perceptron have been established as better approximation and classification models for this domain. This study proposes a chemical reaction optimization (CRO) based neuro-fuzzy network model for prediction of stock indices. The input vectors to the model are fuzzified by applying a Gaussian membership function, and each input is associated with a degree of membership to different classes. A multilayer perceptron with one hidden layer is used as the base model and CRO is used to the optimal weights and biases of this model. CRO was chosen because it requires fewer control parameters and has a faster convergence rate. Five statistical parameters are used to evaluate the performance of the model, and the model is validated by forecasting the daily closing indices for five major stock markets. The performance of the proposed model is compared with four state-of-art models that are trained similarly and was found to be superior. We conducted the Deibold-Mariano test to check the statistical significance of the proposed model, and it was found to be significant. This model can be used as a promising tool for financial forecasting.

Introduction

Forecasting stock market behavior is quite uncertain due to high market volatility, nonlinearity, their complex dynamic systems, and the time-varying nature of markets. In addition, markets will respond arbitrarily to changes in the current political climate and other macroeconomic factors (Hsu et al., 2016; Kotha & Sahu, 2016). These characteristics of stock market must be captured and accounted for in models in order to establish intelligent techniques for forecasting market prices. Achieving the best forecasting accuracy with the lowest volume of input data and least complex model architecture is the key objective of market analysts, forecasters, and researchers (Nayak et al., 2018). Stock market researchers focus on developing models/methodologies to effectively forecast prices, with the goal of maximizing profits through appropriate trading strategies. However, in reality, this is a critical, demanding, and challenging job.

Early approaches to realistically solving this problem by observing the hidden laws of real stock index data were based on verities in statistical and computational models (Zhang, 2003; Adhikari & Agrawal, 2014). In recent years, there has been tremendous development in the field of artificial intelligence and soft computing methodologies, including artificial neural networks (ANN), evolutionary algorithms, and fuzzy systems. Newly developed data mining techniques and advancements in computational intelligence capabilities have been applied to build intelligent information systems for modeling complex, dynamic, and multivariate nonlinear systems (Nayak et al., 2018; Adhikari & Agrawal, 2014). In particular, soft computing methodologies have been applied successfully to areas such as data classification (Alatas, 2011; Alatas, 2012; Nayak et al., 2015), financial forecasting (Nayak et al., 2018), credit scoring (Addo et al., 2018; Tomczak & Zięba, 2015; Chow, 2018), portfolio management (Xu et al., 2011a), business failure prediction, and risk level evaluation (Daubie & Meskens, 2002; Chandra et al., 2009), and they have been found to produce significantly improved results. ANNs have proven to be an effective modeling procedure in stock market forecasting when the input-output mapping contains both regularities and exceptions (Nayak et al., 2018; Zhang, 2003; Adhikari & Agrawal, 2014; Gu et al., 2018; Board, 2017). ANNs also allow for adaptive fine-tuning of the model, its parameters, and the nonlinear description of the problem. Stock markets, characterized by chaos and uncertainty, also behave with regularities and exceptions in terms of data. The advantages of ANNs have made them the center of attention for researchers developing neural-network-based forecasting models for stock market prediction.

Multilayer perceptrons (MLP) are the most reliable and frequently used models among the ANN methodologies. Nonlinear processing of elements and massive interconnectivity are the most important characteristics of an MLP. Some successful applications of MLPs include financial time series forecasting (Yu et al., 2009), market trend analysis (Turchenko et al., 2011), macroeconomic data forecasting (Aminian et al., 2006), and stock exchange movement prediction (Mostafa, 2010). These studies establish the generalization capability and enhanced prediction accuracy of MLP-based forecasting methods. Other applications of MLPs are also found in railway traffic (Zhuo et al., 2007), airline passenger traffic (Blinova, 2007), and maritime traffic forecasting (Mostafa, 2004). From the literature, it can also be observed that MLPs have been successfully applied to forecasting short-term electric load consumption demand (Darbellay & Slama, 2000) and air pollution (Rahman et al., 2017). MLPs are generally trained with the backpropagation of error learning algorithms. However, suffering from slow convergence, sticking to local minima, and computational complexities are the well-known drawbacks of backpropagation learning based MLPs (Calderon & Cheh, 2002). At present, there is no formal method of deriving an optimized MLP network for a given classification or prediction task (Ecer, 2013). To overcome the local minima, more nodes can be added consecutively to the hidden layers. Multiple hidden layers and more neurons in each layer may increase the computational intricacy of the model. Hence, there is no direct method for deciding on the optimal MLP structure for solving a particular problem. The refining process may suffer from elongated computational time, accomplished through iterative testing of a range of architectural parameters and adopting the most successful architecture. Defining the optimal architecture and parameters for an MLP is a matter of experimentation, which is computationally expensive. In order to circumvent the limitations of gradient-descent-based learning, several nature-inspired learning techniques have been developed and applied successfully in the literature. However, their performance essentially depends upon fine tuning several algorithm-specific control parameters. Choosing appropriate control parameters is a difficult task and requires intensive human intervention. Inappropriate selection of algorithm parameters may add to the computational burden or land the model in local optima. Therefore, adopting an optimization technique that requires very few controlling parameters without losing performance can be better choice for solving real-world problems. From a review of the existing research on stock market forecasting, it is observed that 1) achieving superior forecasting accuracy by adapting less complex models is an important area of present-day research, and 2) with the aim of better forecasting accuracies, researchers are moving toward adopting hybrid neural-network models with a large number of evolutionary search optimization algorithms.

Fuzzy Logic (FL) systems are effective in input-output and in-process parameter relationship modeling. The concept of fuzzy logic was introduced by Lotfi Zadeh (Zadeh, 1965) as a way of processing data by allowing partial set membership rather than crisp set membership. The essence of fuzzy set theory lies in its ability to handle vague, ambiguous, and imprecise information, unlike classical set and probabilistic theories, which can handle only dichotomous or Boolean information. Both ANNs and FL have been extensively used by researchers in modeling to describe human thinking and reasoning in a mathematical framework (Liu, 2004; Dubois & Prade, 1980). The integration of ANNs and FL provides a more synergetic effect than either one used individually. The advantage of ANN learning and fuzzy “if-then” rules with suitable membership functions are hybridized to obtain a high degree of accuracy in generating nonlinear input-output relationships. These hybrid systems combine the learning and connectedness architecture of neural networks with the human-like logical reasoning capability of fuzzy systems, thereby taking advantage of both aspects (Zadeh, 1965; Liu, 2004; Dubois & Prade, 1980; Alalaya et al., 2018; Romahi & Shen, 2000; Abraham et al., 2001; Nayak et al., 2012; Nayak et al., 2016; Guan et al., 2018; Ghosh et al., 2009; Kuo et al., 2001; Esfahanipour & Aghamiri, 2010; Singh et al., 2016; Castellano et al., 2007; Keles_ & Keles_, 2013; Boyacioglu & Avci, 2010; Quek, 2005; Abbasi & Abouec, 2008; Yunos et al., 2008; Atsalakis & Valavanis, 2009; Fouladvand et al., 2015). The applications of neuro-fuzzy integrations in data mining problems are discussed in Section 2.

The group method of data handling (GMDH) is another approach aimed at identifying the functional structure of a model hidden within the empirical data. It uses feed-forward networks based on short-term polynomial transfer functions, whose coefficients are obtained using regression, combined with emulation of the self-organizing activity behind neural network learning. Previous research shows that it is the optimal model, and it has a simpler structure than traditional neural models with a higher accuracy with inaccurate, small, or noisy datasets. A GMDH-type neural network based on a genetic algorithm (GA) has been applied to predict the stock price index of the petrochemical industry in Iran (Shaverdi et al., 2012). The results obtained are found to be excellent and highly effective in stock price prediction. Neuro-fuzzy GMDH networks using evolutionary algorithms were proposed in (Najafzadeh et al., 2018; Najafzadeh & Bonakdari, 2016), and the models were found to produce very precise predictions. GMDH networks developed using gravitational search algorithms (GSA), as well as particle swarm optimization (PSO) and back propagation (BP) algorithms have been utilized to predict scour at abutments in armored beds, and they have produced accurate prediction results (Najafzadeh et al., 2015). A GMDH gene expression programming (GMDH-GEP) model performed well in predicting free span expansion rates below pipelines under waves (Najafzadeh & Saberi-Movahed, 2018).

Chemical reaction optimization (CRO) is an evolutionary optimization technique inspired by the nature of chemical reactions (Alatas, 2011; Alatas, 2012). This optimization method does not necessitate a local search to improve it, and it includes both local and global search capabilities (Alatas, 2011; Alatas, 2012). Unlike other optimization techniques, CRO does not entail many parameters that must be specified at beginning. It is only necessary to define the number of initial reactants prior to implementation (Alatas, 2011; Alatas, 2012). As the initial reactants are scattered over a feasible global search expanse, optimal solutions can be obtained with little iteration; hence, a significant reduction in computational time is achieved. CRO has been applied to solve many problems successfully, outperforming many existing evolutionary algorithms. There have been some applications of CRO to data mining, classification rule discovery and other domains (Lam et al., 2012; Lam et al., 2010; Pan et al., 2011; Xu et al., 2010; Xu et al., 2011b; James et al., 2011; Lam & Li, 2010; Truong et al., 2013) as well as in financial forecasting (Nayak et al., 2013; Nayak et al., 2017a; Nayak et al., 2017b), which is discussed in Section 2.

The objective of this study is to develop a hybrid model that can effectively forecast stock index prices with more precise accuracy. The hybrid model uses an MLP with one hidden layer as its base architecture. The input vectors are fuzzified by applying a Gaussian membership function, and each input is associated with a degree of membership to different classes, which in effect increases the dimensionality of the input vector. The Gaussian membership function provides a smoother transition between members and non-members in comparison to triangular and trapezoidal membership functions. Again, when compared with a bell membership function, it has fewer parameters, which makes it easier to use. The robust optimization capability of CRO, with its low number of tuning parameters, motivated us to adopt it as the learning technique. The CRO adjusts the weight and bias vector of the MLP model. The proposed CRO-based neuro-fuzzy network (CNFN) model is validated by forecasting the daily closing indices of the DJIA, BSE, FTSE, TAIEX, and NASDAQ stock markets. The performance of the proposed model is compared to other models, such as CRO based MLP (MLPCRO), back propagation based MLP (MLP-BP), adaptive neuro-fuzzy inference system (ANFIS), and radial basis functional neural network (RBFNN), that are trained similarly.

The foremost contributions of this article are as follows:

  • Proposal of an integrated framework of ANNs and FL.

  • Employment of CRO to adjust the weight and input vectors of the model.

  • Analysis of state-of-art techniques for short- as well as long-term forecasting of real stock closing prices.

  • Rigorous quantitative analysis using five of the latest techniques on data from five stock markets over a period of 13 years and 8 months.

  • Statistical validation of the hypothesis indicating a significant difference between the proposed and comparative models.

  • Adaptive model training to reduce the computational cost of the forecasting model.

The rest of the article is organized as follows. Related research is explored in Section 2. CRO is thoroughly discussed in Section 3. Section 4 presents the proposed CNFN approach. The experimental results are summarized in Section 5, and a clear analysis is carried out to establish the proposed model. Finally, Section 6 concludes the paper.

Related studies

Over the last few decades, rapid growth in the economies of developed countries has amplified the need for more competent and sophisticated forecasting models. In order to outperform conventional statistical methods, several artificial intelligence systems have been developed and found to be experimentally efficient (Nayak et al., 2017a; Nayak et al., 2017b; Zhong & Enke, 2017; Enke & Thawornwong, 2005). Over the decades, a number of forecasting models based on soft computing techniques, such as ANN (Enke & Thawornwong, 2005), FL and its hybridization (Alalaya et al., 2018; Romahi & Shen, 2000; Abraham et al., 2001), GA-based ANN (Nayak et al., 2012) have been applied to stock index forecasting. However, due to the presence of great noise and the complex dimensionality of stock price data, the results of these models may not be deemed satisfactory. Evaluation of clustering algorithms for financial risk analysis using multiple-criteria decision making has been carried out by researchers (Kou et al., 2014). The results demonstrate the effectiveness of the proposed method in evaluating clustering algorithms. Group decision making models for economic interpretations have also been presented by researchers in (Li et al., 2016; Zhang et al., 2019). A survey of existing studies and methodologies used to assess and measure systemic financial risk combined with machine learning technologies can be found in (Kou et al., 2019). A complete description of the applications of ANN in the literature, including methodologies, datasets, and functionalities, is given in Table 1.

Table 1 Review of ANN articles on financial time series prediction

On the contrary, several studies have led to a stronger foundation in the field of neuro-fuzzy systems (Alalaya et al., 2018; Romahi & Shen, 2000; Abraham et al., 2001; Nayak et al., 2012; Nayak et al., 2016; Guan et al., 2018; Ghosh et al., 2009; Kuo et al., 2001; Esfahanipour & Aghamiri, 2010; Singh et al., 2016; Castellano et al., 2007; Keles_ & Keles_, 2013; Boyacioglu & Avci, 2010; Quek, 2005; Abbasi & Abouec, 2008; Yunos et al., 2008; Atsalakis & Valavanis, 2009; Fouladvand et al., 2015). A GA-based fuzzy neural network was applied to measure qualitative effects on stock prices on the Taiwan stock market (Kuo et al., 2001). Studies have shown the importance of variable selection to the success of any network. A neuro-fuzzy inference system adopted on a Takagi–Sugeno–Kang (TSK)-type fuzzy rule based system was developed for stock price prediction on the Tehran Stock Exchange Index (TEPIX) (Esfahanipour & Aghamiri, 2010). The results of this study had 97.8% accuracy. A comparative study of ANFIS and multiple linear regressions was carried out by authors in (Singh et al., 2016) for rainfall runoff modeling, and the ANFIS model was found to be successful.

Castellano et al. studied different hybrid soft-computing-based systems by combining ANNs with evolutionary algorithms and fuzzy systems (Castellano et al., 2007). This study reveals that the use of neuro-fuzzy and evolutionary fuzzy systems can have strong performance as well as learning and adaptive capabilities. A neuro-fuzzy classification tool called NEFCLASS was proposed by Keles and Keles (Keles_ & Keles_, 2013) to establish the adaptation of a fuzzy-rule-based system. An adaptive network-based fuzzy inference system for the prediction of stock market return was presented by Boyacioglu and Avci in (Boyacioglu & Avci, 2010) to forecast the Istanbul stock market (ISE). The experimental results revealed that the model successfully forecast the ISE national 100 index.

To forecast stock prices in the US stock exchange in 2005, Queck used ANFIS and a neuro-fuzzy network and found it to be successful (Quek, 2005). An adaptive neuro-fuzzy inference system was utilized to study the stock price trends in the Tehran stock exchange (Abbasi & Abouec, 2008). Their study was able to forecast the stock market with a low level of error. In order to predict the daily stock movements on the Kuala Lumpur Composite Index (KLCI), Yunos et al. developed a hybrid neuro-fuzzy model in 2008 (Yunos et al., 2008). Their experimental results revealed that the ANFIS algorithm is competent in forecasting when compared to any other ANN-based forecasting model. A neuro-fuzzy adaptive control system was proposed by Atsalakis and Valvanis (Atsalakis & Valavanis, 2009) to forecast the next day’s stock price trend on the NYSE and ASE. The results showed superior performance to the buy and hold strategy. To speed up the iteration and improve the performance of the neuro-evolutionary algorithm, a modified neuro-evolutionary algorithm for mobile robot navigation was proposed (Fouladvand et al., 2015). The study showed that fuzzy logic is an easy way to add initial knowledge to the neuro-evolution algorithm to avoid learning from zero.

Chemical reaction optimization is one of the newly established meta-heuristics for optimization. Prospective readers may follow the complete guidelines for the implementation of CRO in this tutorial (Lam & Li, 2012). A real coded version of chemical reaction optimization (RCCRO) was proposed in (Lam et al., 2012) to solve continuous optimization problems. They also proposed an adaptive scheme for RCCRO for performance improvement. The performance of RCCRO has been compared with a large number of techniques and experimented on using a set of standard continuous benchmark functions. The results show the suitability of CRO in solving problems in the continuous domain. CRO has also been successfully applied for population transition in peer-to-peer live streaming (Lam et al., 2010). CRO is employed to maximize the probability of universal streaming by manipulating the population transition probability matrix. This simulation result show that CRO outperforms many commonly used strategies for this problem. Minimizing the number of coding links in a network for a given target transmission rate to improve the network efficiency is a nondeterministic polynomial time hard problem. Pan et al. (Pan et al., 2011) adopted chemical reaction optimization to develop an algorithm for solving this complex problem and found that the CRO-based framework outperformed any other existing algorithm. The CRO has also been successfully applied to a grid scheduling problem (Xu et al., 2010) and task scheduling problem (Xu et al., 2011b). The authors have compared the efficiency of several versions of CRO with other algorithms such as GA, simulated annealing (SA), and PSO and found it to be superior. CRO is also used to replace backpropagation-based training of ANNs in a classification problem (James et al., 2011). The simulation results show that the CRO-based ANN outperformed other optimization techniques such as GA and support vector machine (SVM). Allocating available channels to unlicensed users in order to maximize the utility of radio channels is a complex task. A CRO-based algorithm has been developed by the authors (Lam & Li, 2010) to solve the radio spectrum allocation problem, and it outperforms other evolutionary techniques. Two different types of chemical reaction optimization, canonical CRO and super molecule based CRO (S-CRO), were proposed in (Xu et al., 2011a) for the problem of stock portfolio selection; the results suggested that S-CRO is promising in handling the stock portfolio optimization problem. A new chemical reaction optimization with a greedy strategy algorithm (CROG) was proposed to solve the 0–1 knapsack problem (Truong et al., 2013). The article designed a new repair function integrating a greedy strategy, and random selection is used to repair the infeasible solutions. The experimental results show the superiority of CROG over GA, ant colony optimization, and quantum-inspired evolutionary algorithms. Applications of CRO for forecasting BSE stock prices are found in (Nayak et al., 2013; Nayak et al., 2017a; Nayak et al., 2017b).

The above studies have found ANN, FL, and CRO to be highly effective soft and evolutionary computing techniques for data mining problems. Also, the review of the related literature showed the unique promise of neuro-fuzzy hybrid networks based on CRO in accurately predicting stock prices.

Chemical reaction optimization

This section describes the basic concepts of artificial chemical reaction optimization. The concept loosely couples mathematical optimization techniques with properties of chemical reactions. A chemical reaction is a natural process of transforming unstable chemical substances (reactants/molecules) into stable ones. A chemical reaction starts with unstable molecules with excessive energy. The molecules interact with each other through a sequence of elementary reactions, producing intermediate chemical products. At the end of the process, they are converted into molecules that require minimum energy to support their existence. The energy associated with a molecule is called enthalpy (minimization problem) and/or entropy (maximization problem). During a chemical reaction this energy changes with the change in the intra-molecular structure of a reactant and becomes stable at a certain point. These reactions may be monomolecular or bimolecular depending on the number of reactants taking part. CRO algorithm begins with a set of initial reactants in a solution. Then reactants are consumed and produced via chemical reactions. The algorithm is terminated when the termination criterion is met, which is similar to the state when no further reactions can take place (inert solution). According to the above algorithm concept, CRO can be represented by Fig. 1.

Fig. 1
figure1

Chemical reaction optimization process

There are two major components of CRO, i.e., the molecule and the elementary reactions, which are discussed in the following subsection.

Molecule

A molecule is the basic manipulated agent in CRO, similar to an individual in optimization techniques. A change in molecular structure means switching to another potential solution in the search space. The energy associated with a molecule is termed KE (kinetic energy) and PE (potential energy). The transformation of a molecule m to m’ is only possible when PEm’ ≤ PEm + KEm. KE helps a molecule to shift to a higher potential state and provides the ability to evade local optima. Hence, there are more chances to have favorable structures in future alterations. In CRO, the inter conversion between the KE and PE among molecules can be achieved through certain elementary chemical reactions, similar to the number of steps in optimization techniques. As the algorithm evolves, the molecules reach lower and lower energy states (KE and PE) and ensure convergence.

Elementary chemical reactions

Different chemical reactions are applied as operators for exploration as well as exploitation of the search space. Based on the number of molecules taking part in a chemical reaction, the reactions may be divided into two categories: monomolecular (one molecule takes part in the reaction) or bimolecular (two molecules taking part in the chemical reaction). The monomolecular reactions (Redox1 and Decomposition) assist in intensification, while the bimolecular reactions (Synthesis, Redox2, and Displacement) give the effect of diversification. We explain the chemical reactions in the following subsections using binary encoding of molecules.

Decomposition reaction

Decomposition reaction occurs when a molecule splits into two fragments on a collision with the wall of the container. The products are quite different from the original reactants. In general, we represent the decomposition of a molecule, m, into m1′ and m2′ as follows:

figurea

We examine every bit value of m. If m(i) is equal to one, its value is copied to m1′ (m), and the value of m2′ (i) is set at random. If m(i) is equal to zero, its value is copied to m2′ (i), and the value of m1′ (i) is set at random. Since m1′ and m2′ are completely different, they can be treated as two different solutions in the search space and may increase the exploration capability of the CRO. The reaction, mm1′ + m2′, is acceptable only if P (m1′ ) + PE(m2′ ) > KE (m) + PE (m).

Redox1 reaction

In this reaction, a molecule is allowed to collide on the wall of the container. This is also called on-wall-ineffective collision. As a result, a small change to the molecular structure happens. A new product, m′, is formed on flipping a random bit of m as follows:

figureb

The chemical system, mm′, is acceptable if K (m) + PE (m) < PE (m′ ), otherwise it is rejected.

Synthesis reaction

Here two molecules, m1 and m2, that synthesize to form a single product, m′, that is much different from the original molecules. The reaction can be shown as follows:

figurec

Here, the corresponding bit values of the reactants are compared. If there is a matching, then the bit value of any molecule is copied to the product. If there is no matching, then either the bit value of m1 or m2 will be copied based on a random value. The new chemical system, m1 + m2 → m′, is acceptable if K (m1) + KE (m2) + PE (m1) + PE (m2) < PE (m′ ).

Redox2 reaction

In this type of reaction, two molecules, m1 and m2, are reacting with each other to produce two new products, m1 ′ and m2 ′. This reaction can be represented as follows:

figured

We select two random points within one along the length of the reactant. Then, the bit values between these points are swapped to get two new products. If K (m1) + K (m2) + PE (m1) + PE (m2) <PE (m1′ ) + PE (m2′ ), then the chemical system m1 + m2 → m1′ + m2′will be accepted, otherwise it is rejected.

Displacement reaction

Here two new molecules are formed as products of the collision of two reactants. The reaction can be represented as follows:

figuree

We compare the corresponding bit values of the two reactants. We swapped the bit values based on a random value to produce new products. If KE(m1) + KE(m2) + PE(m1) + PE(m2) <PE (m1′ ) + PE(m2′ ), the chemical system m1 + m2 → m1′ + m2′will be accepted, otherwise it is rejected.

Reactant update

In this step, a chemical equilibrium test is performed. If the newly generated reactants provide a better function value, the new reactant set is included and the worse reactant is excluded,similar to reversible chemical reactions. The reactants are updated according to their enthalpy (fitness value).

Termination criterion check

The CRO is terminated when the termination criterion (i.e., maximum number of iterations) has been met.

Artificial chemical reaction is more robust and uses less tunable parameters compared to other optimization methods (Alatas, 2011; Alatas, 2012; Lam & Li, 2012). It needs only the number of initial reactants. In this work, we adopted the basic algorithm of chemical reaction optimization suggested in (Alatas, 2011; Alatas, 2012). We used binary encoding for the reactants and the uniform population method for the initial population generation. The initial reactants are evenly initialized in the feasible searching space. As per this method, all vectors in a space can be obtained as a linear combination of elements of the base set. Absence of one of elements in the base set creates a reduction in that dimension corresponding to this element. Therefore, it is important that initial reactants contain reactants that hold each element of the base set. Also, the initial reactants must be regular and hold the base set. The uniform population method, which can be used to generate the initial reactant pool, is defined by Algorithm 1.

figuref

There are many nature-inspired evolutionary algorithms, and variants of them have been proposed and applied to solving nonlinear problems. However, their performance may vary from one dataset to another. According to the “no free lunch theorem” there is no single state of the art constraint handling technique that can outperform all others on every problem. Hence, choosing a suitable optimization technique for solving a particular problem involves numerous trial and error methods. The efficiency of these optimization techniques is characterized by tuning the parameters. For better convergence of the algorithm, suitably fine-tuned parameters are required. In order to search for the global optimum solution, the algorithm requires the appropriate selection of parameters, which makes use of the algorithm difficult. Hence, an optimization technique requiring fewer parameters, small number of computations, as well as good approximation capability will be the better choice. Chemical reaction optimization is one such technique (Alatas, 2011; Alatas, 2012). These facts motivated us to adopt CRO over others. The basic CRO algorithm is discussed in Algorithm 2. As mentioned in this algorithm, it is only necessary to set the value for the initial reactant.

figureg

CNFN method

This section presents the CRO-based neuro-fuzzy (CNFN) forecasting model. The overall high-level steps of the model are shown in Fig. 2.

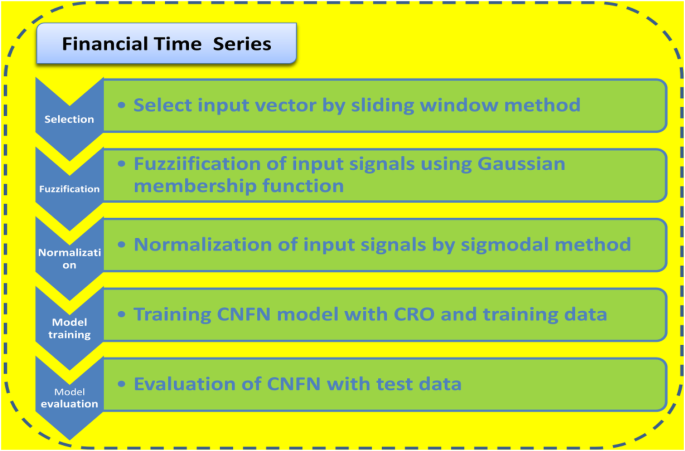

Fig. 2
figure2

Flow diagram for CNFN based forecasting

The proposed method uses a single hidden layer MLP as the base model. The input vector to the model is expanded into different membership functions. The expanded input vector in effect increases the dimensionality of the input vector. Hence, the hyper plane generated by the fuzzy net provides greater discrimination capability in the input pattern space. The Gaussian membership function (MF) smooths the transition between members and non-members, in comparison to triangular and trapezoidal MF. When compared with a bell MF, it has fewer parameters, which makes it easier to use. Gaussian MFs are not triangular, rather they overcome some of the drawbacks of triangular MF, such as avoiding the straight line segment and sharp bends at the corner points in triangular MF. The Gaussian membership function is used in the fuzzification process, which is specified by two parameters {c, σ}, as shown in Eq. 1.

$$ gaussian\;\left(x;c,\sigma \right)={e}^{-\frac{1}{2}{\left(\frac{x-2}{\sigma}\right)}^2}, $$
(1)

where x is the input, c is the center of the pattern, and 휎 is the width or thickness of the input pattern. By considering the smallest, medium, and biggest values as the center of the input pattern, each unit in the input pattern has a triangular Gaussian membership function as its inner function, given by Eqs. 24.

$$ {O}_{i,1}\left({x}_i,{sm}_i,{th}_i\right)={e}^{-\frac{1}{2}{\left(\frac{x_i-{sm}_i}{th_i}\right)}^2}. $$
(2)
$$ {O}_{i,2}\;\left({x}_i,{me}_i,{th}_i\right)={e}^{-\frac{1}{2}{\left(\frac{{}^xi-{me}_i\;}{th_i}\right)}^2}. $$
(3)
$$ {O}_{i,3}\;\left({x}_i,{bg}_i,{th}_i\right)={e}^{-\frac{1}{2}{\left(\frac{{}^xi-{bg}_i\;}{th_i}\right)}^2}, $$
(4)

where xi is the ith input signal, smi is the low value of the ith input vector, bgi is the high value of the ith input vector, andmei is the medium value of the ith input vector, and it is taken as \( \frac{bg_i-{sm}_i}{size\kern0.17em of\kern0.17em input\kern0.17em pattern} \).Each input data point is the input of these membership functions (low, medium, high), and the outputs of the units Oij (i = 1 N, j = 1, 2, 3) are the grades of the membership functions. Let the input vector be represented as X = [x1, x2, , xN] T, where N is the number of closing prices in the input vector and ‘T’ denotes the matrix transpose operation. Let us assume that there are M numbers of classes in the fuzzification process. After the fuzzification process, the output is anN × M membership matrix described as follows:

$$ {\left[\begin{array}{l}{x}_1\\ {}{x}_2\\ {}{x}_3\\ {}\vdots \\ {}{x}_N\end{array}\right]}^T=\left[\begin{array}{l}{mf}_{1,1}\left({x}_1\right)\kern0.6em {mf}_{1,2}\left({x}_1\right)\kern0.48em {mf}_{1,3}\left({x}_1\right)\\ {}{mf}_{2,1}\left({x}_2\right)\kern0.6em {mf}_{2,2}\left({x}_2\right)\kern0.48em {mf}_{2,3}\left({x}_2\right)\\ {}{mf}_{3,1}\left({x}_3\right)\kern0.6em {mf}_{3,2}\left({x}_3\right)\kern0.48em {mf}_{3,3}\left({x}_3\right)\\ {}\kern0.84em \cdots \kern2.52em \cdots \kern2.16em \cdots \\ {}{mf}_{N,1}\left({x}_N\right)\kern0.36em {mf}_{N,2}\left({x}_N\right)\kern0.36em {mf}_{N,3}\left({x}_N\right)\end{array}\right], $$
(5)

Where mfi,j(xi) is the membership of theith input xi (i = 1,2, , N) and(j = 1,2,3, , M).

Now the membership matrix is converted into a vector of length N × M, and this vector is supplied as input to the MLP. The MLP considered here contains a single hidden layer, and the MLP-based predictor is presented in Fig. 3.

Fig. 3
figure3

MLP based predictor

The MLP can approximate any arbitrary function in terms of its mapping abilities. The error correction learning, in this case, is supervised learning, i.e., the desired response for the system is presented at the output neuron. This model consists of a single output unit to estimate one-day-ahead closing prices. The neurons in the input layer use a linear transfer function the neurons in the hidden and output layers use a sigmoidal function as follows:

$$ {Y}_{out}=\frac{1}{1+{e}^{-\lambda {y}_{in}}}, $$
(6)

where yout is the output of the neuron, λ is the sigmoidal gain, and yin is the input to the neuron. The first layer corresponds to the problem input variables, with one node for each input variable. The second layer is useful in capturing nonlinear relationships among the variables. At each neuron, j, in the hidden layer, the weighted output Z is calculated using Eq. 7.

$$ Z=f\;\left({B}_j+\sum \limits_{i=1}^n{V}_{ij}\ast {O}_i\right), $$
(7)

where Oi is the ith component of the N × M input vector, Vij is the synaptic weight value between the ith input neuron and ith hidden neuron, Bj is the bias value, and ƒ is a nonlinear activation function. The output y at the single output neuron is calculated using Eq. 8.

$$ y=f\;\left({B}_o+\sum \limits_{j=1}^m{W}_j\ast Z\right), $$
(8)

where Wj is the synaptic weight value from thejth hidden neuron to the output neuron, Z is the weighted sum calculated in Eq. 7, and B0 is the output bias. This output y is compared to the target output and the error is calculated by using Eq. 9.

$$ {Err}_i=\left|T\arg {et}_i-{Estimated}_i\right|, $$
(9)

where Erri is the error signal, Targeti is the target signal for the ith training pattern, and Estimatedi is the calculated output for the ith pattern. The error signal Er(i) and the input vector are employed to the weight update algorithm to compute the optimal weight vector. During the training, the network is repeatedly presented with the training vector, and the weights and biases are adjusted through CRO till the desired input-output mapping occurs. The error is calculated by Eq. 9, and the objective is to minimize the error function, as shown in Eq. 10, with an optimal set of network parameters.

$$ E(i)=\frac{1}{2}\;\sum \limits_{i=1}^N Err\;{(i)}^2 $$
(10)

The overall architecture of the CNFN model is presented in Fig. 4. The number of neurons in the input layer is equal to the number of components in the membership matrix, i.e., N × M. The number of hidden neurons in the hidden layer is selected experimentally. Since the model forecasts one closing price, there is one neuron in the output layer.

Fig. 4
figure4

Architecture of CNFN based forecasting model

The basic element of CRO is an atom, which can be visualized as a weight or bias value of the network. A set of such atoms (weight and biases) constitute a molecule. For simplicity, the number of input layer neurons is represented as NOIN = NM. Let the number of neurons in the hidden layer, NOHN = , and a single output neuron form the CNFN. Hence, the total number of weight values is (NOINNOHN) + (NOHN 1) = (NMH) + (H 1). Therefore, the length of a molecule is equal to [(NMH) + (H 1) + 2 biasvalues). Fig. 4 represents a molecule of CRO. As shown in the figure, let the weight values between the input layer and hidden layer be represented as [V11,12, , VNMH]. The weight values between the hidden layer and output layer are represented as [W1, W2, , WH]. The two bias values to the hidden and output neurons are [B0, B1].

A reactant is associated with some enthalpy (minimum prediction error signal in this case), which can be considered as the fitness value of that reactant. The mean absolute percentage of error (MAPE) value is treated as the enthalpy of a reactant and calculated in Eq. 11.

$$ MAPE=\frac{\sum_{i=1}^N\left|{Actual}_i-{Estimated}_i\right|}{N}, $$
(11)

where N is the number of input patterns in the training set.

A reactant, as shown in Fig. 5, can be seen as a potential solution for the proposed model. A set of such reactants form a reactant pool, which can be visualized as a search space consisting of possible weight and bias vectors for the model. The search process in CRO starts with an initial reactant pool of random values. Each molecule of the pool, along with the training data, is supplied to the model one by one. The model estimates on output. The corresponding enthalpies are calculated by comparing the model estimation with the desired or target output using Eq. 9. Different chemical reactions (Synthesis, Displacement, Decomposition, Redox1, and Redox2) are applied to the molecules for exploration as well as exploitation of the search space. The fitness of the molecules is evaluated, and the reactant pool is updated with the molecules that have lower enthalpy values. The lower the enthalpy value of a molecule/reactant, the better its chance of being included in the reactant pool. These steps constitute an iteration of CRO. A finite number of such iterations are carried out, and the CRO approaches the global minima. At the end, the reactant pool becomes inert (equilibrium state), and the search process is assumed to be converged. The molecule with the best enthalpy value is selected as the optimal parameter of the model. This molecule along with the test data is supplied to the same model, and the model estimates an output. The difference between the actual signal at the output neuron and the model output is calculated and preserved as the error signal for the respective test pattern. In this way, the error signals for all the train and test patterns of the data set are evaluated. The average of these error signals is calculated by Eq. 11 and considered as the prediction performance of the model. The lower the value of the average error, the more accurate the model is. The high-level training algorithm for the CNFN model is described by Algorithm 3.

Fig. 5
figure5

Reactant representations for CNFN model

figureh

Experimental results and discussion

This section presents the forecasting results obtained by employing the forecasting models discussed above. These models are validated on five real stock indices: the DJIA, BSE, NASDAQ, TAIEX, and FTSE. All the experiments are carried out in a MATLAB-2015 environment, with Intel® core TM i3 CPU, 2.27 GHz processing and 2.42 GB memory size.

Data description, input selection, and preprocessing

The model is validated on five real stock indices: DJIA, BSE, NASDAQ, TAIEX, and FTSE. The closing prices are collected for each transaction day of the stock exchanges from January 1, 2003 to September 12, 2016 (source: https://in.finance.yahoo.com/). These data are publicly available. The historical daily closing prices that form the financial time series are considered for experimentation. The datasets and total number of data points in each set are summarized in Table 2. The closing prices are plotted in Fig. 6.

Table 2 Datasets considered for experiment
Fig. 6
figure6

Daily closing indices of NASDAQ, BSE, DJIA, FTSE, and TAIEX stock market during 01 January 2003 to 12 September 2016

For more clarity on the data analysis, the descriptive statistics of daily closing prices are summarized in Table 3. As can be observed, the positive skewness values of the closing price result in the BSE, DJIA, and NASDAQ datasets being spread out toward right, which is a good symptom of investment opportunities. The kurtosis analysis implies that the stock prices of the DJIA and NASDAQ more prone to outliers, whereas all the other financial time series are less outlier prone. Also, from the Jarque-Bera test statistics, it can be observed that all the stock price datasets are non-normally distributed. From the histogram of daily returns for the TAIEX and BSE, as presented in Fig. 7, it can be observed that the peaks of the histograms are much higher than those corresponding to the normal distribution. In the case the BSE stock data, it is slightly skewed to the right, and in the case of the TAIEX stock data, it is slightly skewed to the left.

Table 3 Descriptive statistics from BSE, DJIA, NASDAQ, FTSE, and TAIEX financial time series
Fig. 7
figure7

Histogram of daily returns of the BSE (left) and TAIEX (right) against the theoretical normal distribution

Stationarity in financial time series

Next, we check the stationarity of all financial time series as this is important for obtaining valid forecasts. Therefore, we first investigate the financial time series for the presence of a unit root to determine whether the analyzed time series are stationary or not. We conducted the stationarity test using two well-known unit root tests: The Augmented Dickey-Fuller (ADF Test) and Phillips-Perron (PP Test). The null hypothesis and alternative for the standard Dickey-Fuller test can be written as follows:

H0: α = 0 = > the series has a unit root, so it is non-stationary and.

Halt: α < 0 = > the series does not have a unit root, so the time series is stationary. These are evaluated using the tα statistic. The tα statistic is calculated as = â /s(â), where α represents the estimate of α and (se(â)) represents the coefficient of standard error. The value of the tα statistics are calculated and then compared with the critical values of the ADF test. If the value of the tα statistic is less than the critical value, then we reject the null hypothesis, meaning there is no unit root and the time series are stationary.

An alternative to the ADF test is the Phillips-Perron test (PP test), which is a non-parametric method that is very similar to the ADF test. However, the PP test allows the residue to be auto correlated by introducing an automatic correction into the testing procedure. The mathematical details of these tests are beyond the scope of this article. We used the ADF test and PP test available in the MATLAB software to check for time series stationarity. The outputs obtained from these tests are summarized in Table 4.

Table 4 The results from Augmented Dickey-Fuller test and Phillips-Perron test for five financial time series

It can be seen from Table 4 that there is non-stationarity in levels and stationarity in the first difference for all five time series analyzed by applying the Augmented Dickey-Fuller and Phillips-Perron tests. This conclusion is in accordance with the Box-Jenkins approach to modeling time series, which states that financial time series are non-stationary.

Input selection

We use a sliding window of fixed size for selecting the input for the forecasting model. In this method, rather than selecting all the data seen so far, or some sample therein, we make decisions based only on recent closing prices. On each sliding of the window, a new closing price is incorporated and the oldest one is discarded. The window moves through the whole financial time series, and the selection of window size is a matter of experimentation. For an example, the indices used for one-day-ahead and one-month-ahead are shown in Figs. 8 and 9, respectively. The total number of windows generated for each category of prediction is presented below in Table 5.

Fig. 8
figure8

Training window generation for one-day-ahead forecasting

Fig. 9
figure9

Training window generation for one-month-ahead forecasting

Table 5 Number of windows generated for each category of prediction

Normalization

In order to normalize the raw closing prices data, several data normalization methods have been tested, and out of these, the sigmoid normalization method was found to be superior (Nayak et al., 2014). The benefit of this normalization technique is that it does not depend on the distribution of data, which may be unknown at the time the model is trained. The normalization method is shown in Eq.12.

$$ {x}_{norm}=\frac{1}{1+{e}^{-\left(\frac{x_i-{x}_{min}}{x_{max}-{x}_{min}}\right)}}, $$
(12)

where xnorm is the normalized price, xi is the current day closing price, xmax and xmin are the maximum and minimum prices of the window, respectively. The data within the current training set are normalized within [0, 1]. Therefore, instead of using the maximum and minimum of whole data set, which may be unavailable at the time of prediction, we use the maximum and minimum of the current training data set. The record to be tested is also normalized using Eq. 12, but its value is not used for deriving the xmax and xmin values, i.e., the target value may reside outside [xmax, xmin]. The normalized values are now considered as the input vector to the model. Since each time the sliding window moves one step ahead, only one new closing price data point has been added to the training set.

Performance metrics

The four performance metrics used for evaluating the forecasting models are as follows: The mean absolute percentage error (MAPE) is the first performance metric to establish a comparable measure across experiments with different stock data sets. The closer the value of MAPE is to zero, the better the prediction ability of the model. The formula for MAPE is represented by Eq.13.

$$ MAPE=\frac{1}{N}\;\sum \limits_{i=1}^N\frac{\left|{x}_i-{\hat{x}}_i\right|}{xi}\times 100\% $$
(13)

The second performance metric is the mean of squared error calculated on the normalized data sets, and it is known as the normalized mean squared error (NMSE). The closer its value is to zero, the better the prediction ability of the model. The NMSE can be calculated as in Eq.14.

$$ NMSE=\frac{1}{N}\;\sum \limits_{i=1}^N{\left({x}_i-{\hat{x}}_i\right)}^2 $$
(14)

The next metric considered is the median absolute percentage error (MDAPE). It is the middle value of all the percentage errors for a data set when the absolute values of the errors are ordered by size. Like the above two metrics, an efficient model is the one in which the MDAPE value is closer to zero.

The fourth performance metric considered here is known as the coefficient of determination, or the coefficient of multiple determinations for multiple regressions represented as R2. R-squared is a statistical measure of how close the data are to the fitted regression line. The definition of R-squared is presented by Eq. 15. The ideal value of R2 is 1(one). 0 values indicate that the model explain none of the variability of the response data around its mean, whereas 1 indicates that the model explains all the variability of the response data around its mean.

$$ {R}^2=1-\frac{SS_{res}}{SS_{tot}}, $$
(15)

where SSres is the sum of the squares of the residuals, or residual sum of squares, and is represented by Eq. 16.

$$ {SS}_{res}=\sum \limits_{i=1}^N{\left({x}_i-{\hat{x}}_i\right)}^2 $$
(16)

Similarly, the SStot is the total sum of the squares that is proportional to the variance of the data, and it is calculated in Eq. 17.

$$ {SS}_{tot}=\sum \limits_{i=1}^N{\left({x}_i-\overline{X}\right)}^2 $$
(17)

The fifth evaluation measure is the average relative variance (ARV). The ARV can be calculated as in 18.

$$ \frac{\sum_{i=1}^N{\left({\hat{x}}_i-{x}_i\right)}^2}{\sum_{i=1}^N{\left({\hat{x}}_i-\overline{X}\right)}^2} $$
(18)

If the ARV value of the forecasting model is equal to 1, then it is considered to be the same as the mean of the financial time series. The model is considered to be performing worst, compared to the mean, if the ARV value is greater than 1. However, the model is considered to be performing better than simply calculating the mean if its ARV value is less than 1. Hence, the closer the value to 0, the more accurate the forecasting model tends to be.

For all the above calculations, xi is the observed data, i is the estimated data, \( \overline{X} \)is the mean of the observed data, and N is the total number of observations.

Results and analysis

Extensive simulation studies are conducted to observe the performance of the proposed CNFN-based forecasting model. Separate experiments are conducted for each data set. In order to avoid the biases of the neural-based models, 20 simulations are conducted, and the averaged results are collected for comparison purposes. The performance of the proposed approach is compared with four other state-of-the-art forecasting models. The comparative models are CRO-based MLP (MLP-CRO), backpropagation-based MLP (MLP-BP), the radial basis functional neural network (RBFNN), and an adaptive neuro-fuzzy inference system (ANFIS) based forecasting model. The training and testing data sets for all the models are the same. Since only one new closing price data point is included into the training set through each move of the sliding window over the financial time series, there may not be a significant change in the nonlinear behavior of the training data set. Therefore, we have used the previously optimized weight set for the successive training instead of considering another random weight set. In this fashion, after the first training set, the number of iterations has been fixed to a small value, significantly reducing training time. During experimentation, different possible values for the model parameters were tested and the best values are recorded. Suitable parameter values obtained during simulation process are called the simulated parameters, and they are presented in Table 6.

Table 6 Simulated parameters for the forecasting models

The MAPE, NMSE, MDAPE, R2, and ARV values generated by all the forecasting models from all five stock indices are presented in Table 7. It can be observed from Table 7 that for all five data sets considered, four models (apart from MLP-BP) have quite good R2 values, very close to the ideal value. This property indicates that the models explain all the variability of the response data around its mean. Also, there is not much significant difference between the R2 values of the CNFN and MLP-CRO models. However, considering the other four metrics, a more comparative performance analysis has been carried out for the models. For all data sets, it can be observed that the proposed CNFN model produces superior MAPE, NMSE, MDAPE, and ARV values compared to other models. For more clarity, the MAPE and ARV values are shown in Figs. 10 and 11, respectively. These graphs provide a clear picture of the proficiency of the CNFN model. The average MAPE generated by the CNFN model over all five stock data sets is 0.004436, whereas it is 0.006701, 0.042947, 0.008261, and 0.006849 for the MLP-CRO, MLP-BP, ANFIS, and RBFNN models, respectively.

Table 7 One-day-ahead forecasting comparison

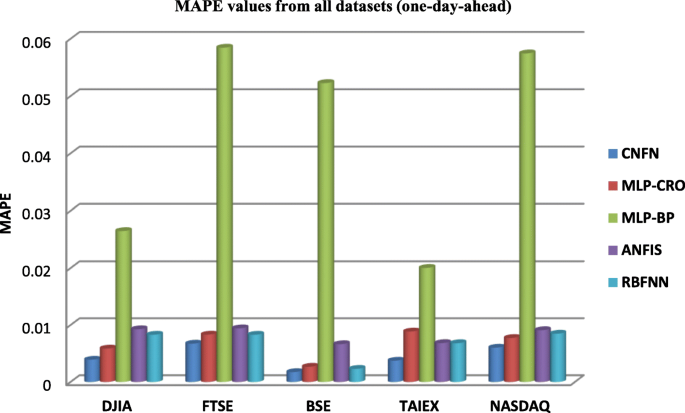

Fig. 10
figure10

MAPE generated by all models from all datasets (One-day-ahead)

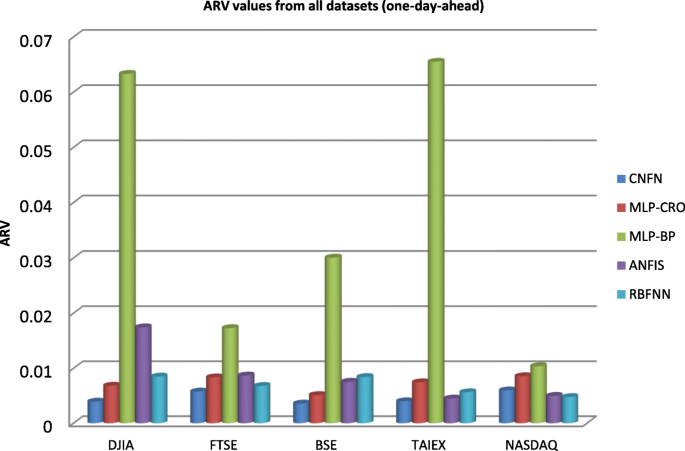

Fig. 11
figure11

ARV generated by all models from all datasets (One-day-ahead)

Similarly, the simulated results from the one-month-ahead forecasting are summarized in Table 8. Here also, the CNFN model exhibits superior performance compared to other models. The average MAPE generated by the CNFN model over all five stock data sets is 0.02656, whereas it is 0.06041, 0.08183, 0.05881, and 0.064045 for the MLP-CRO, MLP-BP, ANFIS, and RBFNN models, respectively. This also demonstrates the superiority of the proposed approach. For more clarity, the MAPE and ARV values are shown in Figs. 12 and 13 respectively. These graphs provide a clear picture of the proficiency of the CNFN model.

Table 8 One-month-ahead forecasting comparison
Fig. 12
figure12

MAPE generated by all models from all datasets (One-month-ahead)

Fig. 13
figure13

ARV generated by all models from all datasets (One-month-ahead)

The proposed CNFN model differs from the ANFIS model in the following ways. The conventional ANFIS model has five layers of architecture. However, the CNFN has only three layers. A gradient descent backpropagation learning algorithm is used in the ANFIS for weight and bias optimization. On the other hand, CRO is characterized by a faster convergence rate, better performance, and less tunable control parameters. Hence, the CNFN is computationally and performance-wise better than the ANFIS.

Further, the performance of the CNFN can be evaluated by plotting the estimated closing prices against the actual prices of the individual stock data sets. Figs. 14, 15, 16, 17 and 18 show the plots for all five data sets for the one-day-ahead forecasting. From these plots it can be observed that the estimated prices from the CNFN model are quite close to the actual prices, which establishes the accuracy of the model.

Fig. 14
figure14

Estimated v/s actual closing prices by CNFN forecasting model for DJIA stock market data

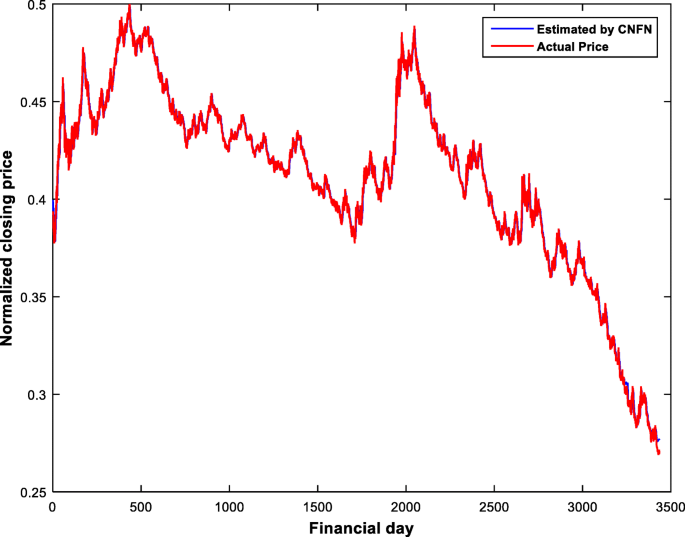

Fig. 15
figure15

Estimated v/s actual closing prices by CNFN forecasting model for NASDAQ stock market data

Fig. 16
figure16

Estimated v/s actual closing prices by CNFN forecasting model for BSE stock market data

Fig. 17
figure17

Estimated v/s actual closing prices by CNFN forecasting model for FTSE stock market data

Fig. 18
figure18

Estimated v/s actual closing prices by CNFN forecasting model for TAIEX stock market data

Deibold-Mariano test

To find out the precise advantage of the proposed model, we chose the Deibold-Mariano (DM) test of statistical significance (Diebold & Mariano, 2002; Harvey et al., 1997). The DM Test is a pair-wise comparison of two or more time series models and is available for forecasting a particular variable of interest. Let the actual time series be {yt;t = 1, , T}, and the two forecasts are {ŷ1t;t = 1, , T} and {ŷ2t;t = 1, , T}, respectively. The objective is to test whether the forecasts are equally good. The DM statistic is defined as:

$$ \mathrm{DM}=\frac{\overline{\mathrm{d}}}{\sqrt{\frac{{\hat{\upgamma}}_{\mathrm{d}}(0)+2{\sum}_{\mathrm{k}=1}^{\mathrm{h}-1}{\hat{\upgamma}}_{\mathrm{d}}\left(\mathrm{k}\right)}{\mathrm{T}}}}, $$
(19)

where \( \overline{\mathrm{d}} \) is the sample mean of the loss differential, h is the forecast horizon, and γ̂ d (k) is an estimate of the auto-covariance of the loss differential γ d (k) at lag k. The null hypothesis of no difference will be rejected if the DM statistic value falls outside the range of −z/2 toz/2, i.e., |DM| > z/2, where z/2is the upper z-value from the standard normal table corresponding to half of the desired level of the test. Consider the significance level of the test as  = 0.05. Since this is a two-tailed test, the lower critical z-value corresponds to − 0.025 is − 1.96, and the upper critical z-value corresponds to 0.975 is 1.96. If the computed DM statistic falls outside the range of − 1.96 to 1.96 the null hypothesis of no difference will be rejected. The computed DM statistics are summarized in the Table 9. It can be observed that the computed DM statistic values lie outside the critical range, which supports rejection of the null hypothesis.

Table 9 Computed DM statistic values (one-day-ahead forecasting)

From the above table, it can be seen that the DM statistics obtained always lie outside of the critical range. Hence, the null hypothesis of no difference between the CNFN and the other models is rejected.

Conclusions

This paper proposed an intelligent chemical-reaction-optimization-based neuro-fuzzy network (CNFN) model to capture the high market volatility, nonlinearity, complex dynamism, and time-varying nature of stock market data. To increase the dimensionality of the input pattern space for better generalization, the input signals to the model are fuzzified. Different fuzzification methods are tested and the Gaussian membership function is found to be better. The Gaussian membership function enables smoother transitions between members and non-members in comparison to triangular and trapezoidal membership functions, and it has fewer parameters than the bell membership function. Each input pattern generated after fuzzification is associated with a degree of membership to different classes. The optimal search space of this model is explored through CRO, which requires fewer tunable parameters. The proposed CNFN model has been employed for short-term and long-term predictions of closing prices for five real stock indices over a period of 13 years and 8 months. The model is adaptive in nature and uses the least number of input closing prices, which reduces computation time. The underlying motivations for using CRO in this study are to overcome the issues of convergence, parameter setting, and over fitting as well as to accurately forecast financial time series data even when the underlying system processes are typically nonlinear. Five performance metrics were used to evaluate the performance of the model. The performance of the model was also compared to that of four other models: the MLP-CRO, MLP-BP, ANFIS, and RBFNN models, and was found to be significantly better. The Deibold-Mariano test also established the superiority of the proposed model. The use of MLP as base model in CNFN may increase the computation and is a limitation of this model. The future research may include the use of other fuzzy membership methods and testing the applicability of the proposed model in other domains.

Availability of data and materials

The datasets analyzed and experimented during the current study are available at https://in.finance.yahoo.com/, which openly available. The source of datasets is highlighted in subsection 5.1.

Abbreviations

ACO:

Ant Colony Optimization

ANFIS:

Adaptive Network based Fuzzy Inference System

ANN:

Artificial Neural Network

ARV:

Average Relative Variance

BPNN:

Back Propagation Neural Network

BSE:

Bombay Stock Exchange

CNFN:

CRO based Neuro-Fuzzy Network

CRO:

Chemical Reaction Optimization

DE:

Differential Evolution

DJIA:

Dow Jones Industrial Average

FL:

Fuzzy Logic

GA:

Genetic Algorithm

GD:

Gradient Descent

GSA:

Gravitational Search Algorithm

HS:

Harmony Search

KE:

Kinetic Energy

MA:

Moving Average

MAPE:

Mean Absolute Percentage of Error

MDAPE:

Median Absolute Percentage Error

MLP:

Multilayer Perceptron

MLP-BP:

Backpropagation based MLP

MLP-CRO:

CRO based Multilayer Perceptron

NMSE:

Normalized Mean Squared Error

PE:

Potential Energy

PSNN:

Pi-Signa Neural Network

PSO:

Particle Swarm Optimization

RBFNN:

Radial Basis Functional Neural Network

TEPIX:

Tehran Stock Exchange Index

TSK:

Takagi-Sugeno-Kang

References

  1. Abbasi E, Abouec A (2008) Stock price forecast by using neuro-fuzzy inference system. Proceedings of World Academy of Science. Eng Technol 36:320–323

  2. Abraham A, Nath B, Mahanti PK (2001) Hybrid intelligent systems for stock market analysis. In: International Conference on Computational Science. Springer, Berlin, pp 337–345

  3. Addo P, Guegan D, Hassani B (2018) Credit risk analysis using machine and deep learning models. Risks 6(2):38

  4. Adhikari R, Agrawal RK (2014) A combination of artificial neural network and random walk models for financial time series forecasting. Neural Comput Appl 24(6):1441–1449

  5. Alalaya MM, Al Rawashdeh HA, Alkhateb A (2018) Combination Method between Fuzzy Logic and Neural Network Models to Predict Amman Stock Exchange. Open J Bus Manag 6(03):632

  6. Alatas B (2011) ACROA: artificial chemical reaction optimization algorithm for global optimization. Expert Syst Appl 38(10):13,170–13,180

  7. Alatas B (2012) A novel chemistry based metaheuristic optimization method for mining of classification rules. Expert Syst Appl 39(12):11,080–11,088

  8. Aminian F, Suarez ED, Aminian M, Walz DT (2006) Forecasting economic data with neural networks. Comput Econ 28(1):71–88

  9. Atsalakis GS, Valavanis KP (2009) Forecasting stock market short-term trends using a neuro-fuzzy based methodology. Expert Syst Appl 36(3):10,696–10,707

  10. Blinova TO (2007) Analysis of possibility of using neural network to forecast passenger traffic flows in Russia. Aviation 11(1):28–34

  11. Board, F. S. (2017). Artificial intelligence and machine learning in financial services. November, available at: http://www.fsb.org/2017/11/artificialintelligence-and-machine-learning-in-financialservice/(Accessed 30 Jan 2018).

  12. Boyacioglu MA, Avci D (2010) An Adaptive Network-Based Fuzzy Inference System (ANFIS) for the prediction of stock market return: The case of Istanbul Stock Exchange. Expert Syst Appl 37:7908–7912

  13. Calderon TG, Cheh JJ (2002) A roadmap for future neural networks research in auditing and risk assessment. Int J Account Inf Syst 3(4):203–236

  14. Castellano G, Castiello C, Fanelli AM, Jain L (2007) Evolutionary neuro-fuzzy systems and applications. Advances in evolutionary computing for system design, studies in computational intelligence, vol 66. Springer, Verlag, pp 11–45

  15. Chandra DK, Ravi V, Bose I (2009) Failure prediction of dotcom companies using hybrid intelligent techniques. Expert Syst Appl 36(3):4830–4837

  16. Chow JC (2018) Analysis of Financial Credit Risk Using Machine Learning. arXiv preprint arXiv 1802:05326

  17. Darbellay GA, Slama M (2000) Forecasting the short-term demand for electricity: Do neural networks stand a better chance? Int J Forecasting 16(1):71–83

  18. Daubie M, Meskens N (2002) Business failure prediction: a review and analysis of the literature. In: New trends in banking management. Physica, Heidelberg, pp 71–86

  19. Diebold FX, Mariano RS (2002) Comparing predictive accuracy. J Bus Econ Stat 20(1):134–144

  20. Dubois D, Prade H (1980) Fuzzy sets and systems: theory and applications. Academic Press, New York, pp 255–348

  21. Ecer F (2013) Comparing the bank failure prediction performance of neural networks and support vector machines: The Turkish case. Economic Research-Ekonomska istraživanja 26(3):81–98

  22. Enke D, Thawornwong S (2005) The use of data mining and neural networks for forecasting stock market returns. Expert Syst Appl 29:927–940

  23. Esfahanipour A, Aghamiri W (2010) Adapted Neuro-Fuzzy Inference System on indirect approach TSK fuzzy rule base for stock analysis, Expert Systems with Applications, vol 37, pp 4742–4748

  24. Fouladvand S, Salavati S, Masajedi P, Ghanbarzadeh A (2015) A modified neuro-evolutionary algorithm for mobile robot navigation: Using fuzzy systems and combination of artificial neural networks. Int J Knowl Based Intell Eng Syst 19(2):125–133

  25. Ghosh A, Shankar BU, Meher SK (2009) A novel approach to Neuro-fuzzy classification. Neural Network 22(1):100–109

  26. Gu S, Kelly B, Xiu D (2018) Empirical asset pricing via machine learning (No. w25398). National Bureau of Economic Research

  27. Guan H, Dai Z, Zhao A, He J (2018) A novel stock forecasting model based on High-order-fuzzy-fluctuation Trends and Back Propagation Neural Network. PloS one 13(2):e0192366

  28. Harvey D, Leybourne S, Newbold P (1997) Testing the equality of prediction mean squared errors. Int J Forecasting 13(2):281–291

  29. Hsu MW, Lessmann S, Sung MC, Ma T, Johnson JE (2016) Bridging the divide in financial market forecasting: machine learners vs. financial economists. Expert Syst Appl 61:215–234

  30. James JQ, Lam AY, Li VO (2011) Evolutionary artificial neural network based on chemical reaction optimization. In: 2011 IEEE Congress of Evolutionary Computation (CEC), pp 2083–2090 IEEE

  31. Keles_ A, Keles_ A (2013) Extracting fuzzy rules for diagnosis of breast cancer. Turkish J Electrical Eng Comput Sci 21(1):1495–1503

  32. Kotha KK, Sahu B (2016) Macroeconomic factors and the Indian stock market: Exploring long and short run relationships. Int J Econ Financ Issues 6(3):1081–1091

  33. Kou G, Chao X, Peng Y, Alsaadi FE, Herrera-Viedma E (2019) Machine learning methods for systemic risk analysis in financial sectors. Technol Econ Dev Economy:1–27

  34. Kou G, Peng Y, Wang G (2014) Evaluation of clustering algorithms for financial risk analysis using MCDM methods. Inf Sci 275:1–12

  35. Kuo RJ, Chen CH, Hwang YC (2001) An intelligent stock trading decision support system through integration of genetic algorithm based fuzzy neural network and artificial neural network. Fuzzy Sets Systems, vol 118, pp 21–24

  36. Lam AY, Li VO (2010) Chemical reaction optimization for cognitive radio spectrum allocation. In: 2010 IEEE Global Telecommunications Conference GLOBECOM 2010, pp 1–5 IEEE

  37. Lam AY, Li VO (2012) Chemical reaction optimization: A tutorial. Memetic Computing 4(1):3–17

  38. Lam AY, Li VO, James JQ (2012) Real-coded chemical reaction optimization. IEEE Trans Evol Comput 16(3):339–353

  39. Lam AY, Xu J, Li VO (2010) Chemical reaction optimization for population transition in peer-to-peer live streaming. In: IEEE Congress on Evolutionary Computation, pp 1–8 IEEE

  40. Li G, Kou G, Peng Y (2016) A group decision making model for integrating heterogeneous information. IEEE Transact Syst Man Cybern Syst 48(6):982–992

  41. Liu B (2004) Uncertainty theory: an introduction to its axiomatic foundations. Springer, Berlin, pp 191–346

  42. Mostafa MM (2004) Forecasting the Suez Canal traffic: a neural network analysis. Marit Policy Manag 31(2):139–156

  43. Mostafa MM (2010) Forecasting stock exchange movements using neural networks: Empirical evidence from Kuwait. Expert Syst Appl 37(9):6302–6309

  44. Najafzadeh M, Barani GA, Hessami-Kermani MR (2015) Evaluation of GMDH networks for prediction of local scour depth at bridge abutments in coarse sediments with thinly armored beds. Ocean Eng 104:387–396

  45. Najafzadeh M, Bonakdari H (2016) Application of a neuro-fuzzy GMDH model for predicting the velocity at limit of deposition in storm sewers. Journal of Pipeline Systems Engineering and. Practice 8(1):06016003

  46. Najafzadeh M, Saberi-Movahed F (2018) GMDH-GEP to predict free span expansion rates below pipelines under waves. Mar Georesources Geotechnol:1–18

  47. Najafzadeh M, Saberi-Movahed F, Sarkamaryan S (2018) NF-GMDH-Based self-organized systems to predict bridge pier scour depth under debris flow effects. Mar Georesources Geotechnol 36(5):589–602

  48. Nayak J, Naik B, Behera HS (2015) A novel chemical reaction optimization based higher order neural network (CRO-HONN) for nonlinear classification. Ain Shams Eng J 6(3):1069–1091

  49. Nayak SC, Misra BB, Behera HS (2012) Stock index prediction with neuro-genetic hybrid techniques. Int J Comput Sci Inform 2:27–34

  50. Nayak SC, Misra BB, Behera HS (2013) Hybridzing chemical reaction optimization and artificial neural network for stock future index forecasting. In: 2013 1st International Conference on Emerging Trends and Applications in Computer Science, pp 130–134 IEEE

  51. Nayak SC, Misra BB, Behera HS (2014) Impact of data normalization on stock index forecasting. Int J Comp Inf Syst Ind Manag Appl 6:357–369

  52. Nayak SC, Misra BB, Behera HS (2016) Efficient forecasting of financial time-series data with virtual adaptive neuro-fuzzy inference system. Int J Bus Forecasting Mark Intell 2(4):379–402

  53. Nayak SC, Misra BB, Behera HS (2017a) Artificial chemical reaction optimization of neural networks for efficient prediction of stock market indices. Ain Shams Eng J 8(3):371–390

  54. Nayak SC, Misra BB, Behera HS (2017b) Artificial chemical reaction optimization based neural net for virtual data position exploration for efficient financial time series forecasting. Ain Shams Eng J

  55. Nayak SC, Misra BB, Behera HS (2018) ACFLN: artificial chemical functional link network for prediction of stock market index. Evolving Systems:1–26

  56. Niaki STA, Hoseinzade S (2013) Forecasting S&P 500 index using artificial neural networks and design of experiments. J Ind Eng Int 9(1):1

  57. Pan B, Lam AY, Li VO (2011) Network coding optimization based on chemical reaction optimization. In: 2011 IEEE Global Telecommunications Conference-GLOBECOM 2011, pp 1–5 IEEE

  58. Quek C (2005) Predicting the impact of anticipator action on US stock market – An event study using ANFIS (a neural fuzzy model). Comput Intell 23:117–141

  59. Rahman, P. A., Panchenko, A. A., & Safarov, A. M. (2017). Using neural networks for prediction of air pollution index in industrial city. In IOP Conference Series: Earth and Environmental Science (Vol. 87, No. 4, p. 042016). IOP Publishing.

  60. Romahi Y, Shen Q (2000) Dynamic financial forecasting with automatically induced fuzzy associations. In: Ninth IEEE International Conference on Fuzzy Systems. FUZZ-IEEE 2000, vol 1, pp 493–498 (Cat. No. 00CH37063). IEEE

  61. Shaverdi M, Fallahi S, Bashiri V (2012) Prediction of Stock Price of Iranian Petrochemical Industry using GMDH-Type Neural Network and Genetic Algorithm. Appl Math Sci 6(7):319–332

  62. Singh VK, Kumar P, Singh BP, Malik A (2016) A comparative study of adaptive neuro fuzzy inference system (ANFIS) and multiple linear regression (MLR) for rainfall-runoff modelling. Int J Sci Nat 7(4):714–723

  63. Tomczak JM, Zięba M (2015) Classification restricted Boltzmann machine for comprehensible credit scoring model. Expert Syst Appl 42(4):1789–1796

  64. Truong TK, Li K, Xu Y (2013) Chemical reaction optimization with greedy strategy for the 0–1 knapsack problem. Applied Soft Comput 13(4):1774–1780

  65. Turchenko, V., Beraldi, P., De Simone, F., & Grandinetti, L. (2011). Short-term stock price prediction using MLP in moving simulation mode. In Proceedings of the 6th IEEE International Conference on Intelligent Data Acquisition and Advanced Computing Systems (Vol. 2, pp. 666–671). IEEE.

  66. Ture M, Kurt I (2006) Comparison of four different time series methods to forecast hepatitis A virus infection. Expert Syst Appl 31:41–46

  67. Xu J, Lam AY, Li VO (2010) Chemical reaction optimization for the grid scheduling problem. In: 2010 IEEE International Conference on Communications, pp 1–5 IEEE

  68. Xu J, Lam AY, Li VO (2011a) Stock portfolio selection using chemical reaction optimization. In: Proceedings of International Conference on Operations Research and Financial Engineering (ICORFE 2011), pp 458–463

  69. Xu J, Lam AY, Li VO (2011b) Chemical reaction optimization for task scheduling in grid computing. IEEE Transact Parallel Distributed Syst 22(10):1624–1631

  70. Yu L, Wang S, Lai KK (2009) A neural-network-based nonlinear metamodeling approach to financial time series forecasting. Appl Soft Comput 9(2):563–574

  71. Yunos ZM, Shamsuddin SM, Sallehuddin R (2008) Data Modeling for Kuala Lumpur Composite Index with ANFIS. In: Second Asia international conference on modeling and simulation, AICMS 08, Kuala Lumpur, pp 609–614

  72. Zadeh L (1965) A. Fuzzy sets. Inf Control 8(3):338–353

  73. Zhang GP (2003) Time series forecasting using a hybrid ARIMA and neural network model. Neurocomputing 50(2003):159–175

  74. Zhang H, Kou G, Peng Y (2019) Soft consensus cost models for group decision making and economic interpretations. Eur J Oper Res 277(3):964-980

  75. Zhong X, Enke D (2017) Forecasting daily stock market return using dimensionality reduction. Expert Syst Appl 67:126–139

  76. Zhuo W, Li-Min J, Yong Q, Yan-Hui W (2007) Railway passenger traffic volume prediction based on neural network. Appl Artif Intell 21(1):1–10

Download references

Acknowledgements

The authors are grateful to the editor-in-chief and the anonymous reviewers for their valuable suggestions which helped in improving the quality of this paper. The authors are also thankful to the Southwestern University of Finance and Economics for providing open access to our article. The first author would like to thank to the management, CMR College of Engineering & Technology, Hyderabad, India, for their continuous encouragement and support.

Funding

Not applicable, No funding available.

Author information

SCN (first author) designed the forecasting model, analyzed and interpreted data, conducted experiments, discussed the results and wrote the article. BBM (second author) explored the research area and was a major contributor in writing the manuscript. All authors read and approved the final manuscript.

Correspondence to Sarat Chandra Nayak.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Nayak, S.C., Misra, B.B. A chemical-reaction-optimization-based neuro-fuzzy hybrid network for stock closing price prediction. Financ Innov 5, 38 (2019) doi:10.1186/s40854-019-0153-1

Download citation

Keywords

  • Artificial neural network
  • Neuro-fuzzy network
  • Multilayer perceptron
  • Chemical reaction optimization
  • Stock market forecasting
  • Financial time series forecasting
